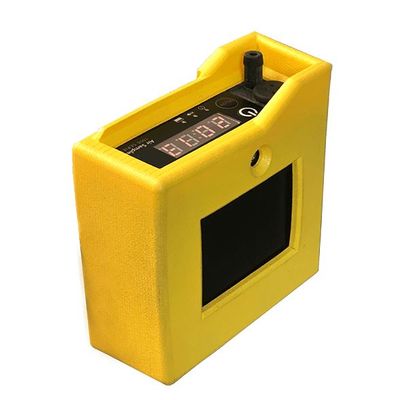

Particles Plus - Model 1000 Series -Wearable Air Samplers
Small in size, simple to use and easy to operate, the Air Sampler 1000 Series is ideal for personal sampling applications. Only weighing 0.70 lbs. this provides a flow range between 1000 – 3000 ml/min. The 1000 Series allows for constant flow correction even with changes in ambient temperature and barometric pressure through our ultra-quiet rotary vane vacuum pump technology. The easy to read LED display provides accumulated sampling volume and a battery conservation mode after 30 seconds of idle use allowing for over 30 hours of continuous sampling. The power switch allows for easy operation including Continuous Sampling, Volume Reset and Battery Conservation Mode, with the push of a button.
Most popular related searches
rotary vane vacuum pump
air sampling
rotary vane pump
barometric pressure
pump technology
pump controller
personal sampling
flow control
vacuum pump
rotary vacuum pump
Performance
- Flow Range: 1000 - 3000 ml/min
- Flow Control: Holds constant flow to ± 5% of set-point
General
- Controls: Power Switch, Pump Control
- Additional Features: Quiet Rotary Vane Pump, Protective Holster, Long-life LED Display, Built
- in Belt-Clip, Replaceable Filter
- Dimensions: 3.7 in. x 3.6 in. x 1.2 in. (9.4 cm x 9.1 cm x 4.8 cm)
- Weight: 11.2 ounces (0.70 lb.)
Battery
- Type: Lithium-Ion Rechargeable Battery
- Run Time: >30 hours continuous use
- Battery Recharge Time: 2 Hours
Environmental
- Temperature Ranges
- Operating Temperature: -20°C to 45°C (-4°F to 113°F )
- Storage Temperature: -40°C to 45°C (-40°F to 113°F )
- Charging Temperature: 5°C to 45°C (41°F to 113°F )
- Humidity Ranges
- Operating: 5-85 %RH, non-condensing
- Storage: 5-98 %RH, non-condensing
