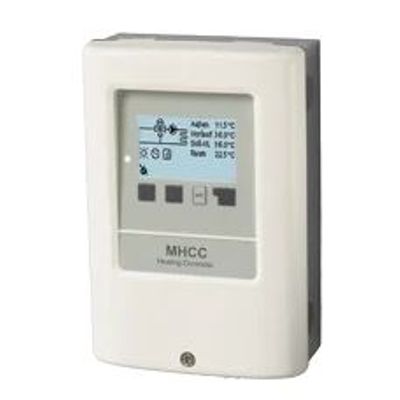

Sorel - Model MHCC -Weather-Compensated Heating Controller

FromSorel GmbH Mikroelektronik

Weather-compensated heating controller for a mixed circuit with heat request.

Most popular related searches

digital temperature controller

laboratory thermostat

vacuum sensor controller

Temperature control class VI / 4%
Sensor inputs 4
of which for PT1000 Temperature sensors 3
of which for remote adjuster 1
of which for Direct Sensors VVX / VFS / RPS Temperature 0
of which for Direct Sensors VVX / VFS / RPS flow 0
Compatible room thermostat °CALEON / RC20 / RC21
Relay outputs 230V 3
Relay output voltage-free ✕
Outputs 0..10V or PWM signal (for modulating burner control) 1
24VDC output for external devices bis zu 2W
Number of applications 2
Extension of pre-defined systems
by selectable additional functions ✕
LEDs red/green for display of operating status ✓
Programmable thermostat times and functions per day 3
Comfort function for quick heating ✓
Heating circuit with mixer ✓
Heating circuit without mixer ✕
Domestic hot water function with operating times ✕
Legionella function via solar ✕
Legionella protecion via additional heating ✕
Cooling ✕
Setup wizard ✓
Solar-System protection ✕
Solar-Collector protection ✕
Buffer discharge protection ✓
Anti-freeze protection ✓
Seizing Protection ✓
Solar-Recooling ✕
Start logic for vacuum tube collectors ✕
Control program for self-dumping systems (drain-back) ✕
Function control and error memory with date and time ✓
Error memory and analysis with date and time ✓
Input for low energy tariff or PV overproduction (PV contact) ✕
Menu blocker ✓
CAN bus connection for SOREL Connect ✓
Data logging on microSD card via Datalogger
Ethernet connection via Datalogger
Dimensions Height x Width x Depth in mm 163 x 110 x 51
Housing colour RAL 9003
Protection Class IP40
Mounting Hardware, Spare Fuse and User Manual ✓
