Atmos - Model N & NT -Weather Station
This handsomely crafted analogue weather monitor is our entry level model; the Instromet Atmos N series home weather station. It has the ability to show wind speed as well as direction, along with temperature and rainfall.
The Atmos N model weather monitor is able to display:
- Wind speed (selectable from MPH, MPS, KPH)
- Wind direction via a mechanical dial
The Atmos NT is an Atmos N with the addition of an Instromet MWD (Multi Weather Display). The MWD fitted to the Atmos NT has the ability to display
- Temperature (C/F switchable with Min/Max function).
- Rainfall (mm/inc selectable and accumulated display).
- Time and date for reference.
The Atmos N model is sold as a complete system. Supplied with a display, junction box with plug in power supply unit as well as an Instromet basic wind sensor.
The Atmos NT model is also sold as a complete system. Supplied with a display, junction box with plug in power supply unit and an Instromet wind/temp sensor.
For an extended sensing range, a rainfall sensor can also be used with the NT model. Rain sensor information.
Display:
- Wind direction: N & NT Mechanical Dial.
- Wind speed: Analogue pointer indicator calibrated scale 0 – 90 mph, 0 – 80 knots and 1 – 12 Beaufort scale, accuracy ± 7.5 %.
- Gust speed: reset pointer for maximum readings.
- Temperature: NT models only – Liquid Crystal Display (LCD) scale in °C or °F selectable by push-button on display case side. Range: -40°C to + 50°C (-40°F to + 120°F) resolution 0.1°C.
- Display case: 305mm long x 180mm high x 60mm deep.
- Material: Sapele natural wood.
- Finish: Sapele wood acid catalyst lacquer with natural glass window front.
- Scales: Black on white background.
- Sensors: Basic wind speed and direction for mast mounting 30 – 50mm diameter.
- Cable: 6 x 7/0.2 T.C unscreened pvc/pvc-25 metres.
- Junction box and plug-in power unit – supplied.

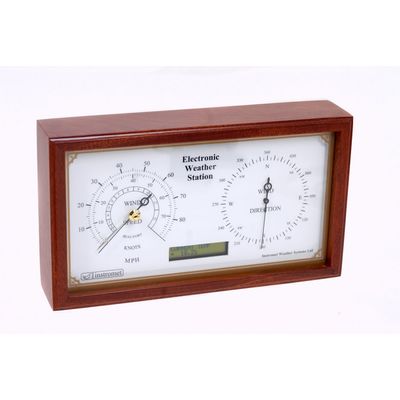

Atmos NT weather station wind speed & direction screen
Mounting kits available:
- 1 metre mast #480 1000 094
- 2 metre mast #480 1000 096
- Tile and wall clamp #480 1000 097
