LoRaWAN - Weather Station

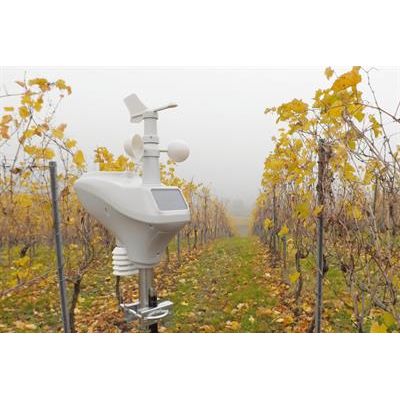

The “WEATHER STATION LoRaWAN” is a versatile and rugged IoT (Internet of Things) device for continuous Weather Watching.
It is ideal for agriculture because it embeds the LoRa/LoRaWAN transmission technology, suitable to long range data transmission.
WEATHER STATION INTEGRATED SENSORS:
HARDWARE SENSORS
- Temperature
- Humidity
- Rain
- Wind Speed
- Wind Direction
SOFTWARE SENSORS
- Dew Point
- Wet Leaf
LoRaWAN WEATHER STATION – FEATURES
10 minutes to install and configure
Transmission Module: LoRa/LoRaWan
SX1272 LoRa module
Transmission Frequency: 868 or 900 MHz
Range Links: Up to 20 Km (12.4 miles)
CPU: 32-bit ARM CortexTM-M0+ Atmel ATSAMD20G1x
RAM: up to 32 KB
FLASH Memory: up to 256 KB
MQTT supported
Battery: 3.7v LiPo 9900 mAh
Solar Panel: 1,5w poly
Operating range: (-40 to +60 °C)
TECHNICAL FEATURES
Sensors
Temperature: Operating range (-40 to 123.8°C | 254.9°F)
Accuracy: ±0.4°C
Humidity: Operating range (0 to 100 %RH)
Accuracy: ±3.0 %RH
Dew Point: period of validity (0 °C < T < 60 °C | 0,01 < RH < 1,00)
Rain: Volume 0-9999 mm
Resolution: 0.28 mm di pioggia
Wind Speed: operating range 0 ~ 240km/h
Sensitivity: 2.4km/h / turn
Wind Direction: Accuracy (8 cardinal points)
Wet Leaf: Accuracy (100%)
Connectivity
The SX1272 transceiver feature the LoRa™ long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. Using Semtech’s patented LoRa™ modulation technique SX1272 can achieve a sensitivity of over -137 dBm. The module use External antenna connector (50 Ω single-ended U.FL connector) or Ceramic antenna (868 MHz integrated antenna).
Power consumption:
Transmit mode:+14dBm 40 mA | Sleep mode: 3 μA
General Features
Coverage area: 25 ha
The electronic components of the LoRaWAN weather station are protected in a waterproof box (IP65), resistant to weather conditions.
Box:
The normal dimensions of the box are (cm): 20.3×15.4×8.3 | Width x Height x Length
but they could change with the installed sensors
Solar Power Panel:
The dimensions change according to the size of the box,
but the standard measures are(cm): 16×11.5 | Width x Height 1.5 watt
Battery
Package: 18650
Nominal Voltage: 3.7V LiPo
Nominal Capacity: 9900 mAh
Additional Sensors:
UV sensor
Operating range(0 to 8000 w/c)
UV Index: 0 to 12
Light sensor
Operating range(0 to 400k lux)
Accuracy ±15%
Solar Radiation Sensor
Up to 1400 Watt/m2
Accuracy: ±5%
