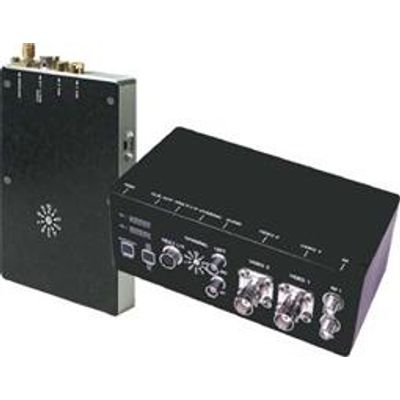

Intec - Model VSRF -Weatherproof Camera Control System
Monitor and Control from a Remote Location – Full camera capabilities from the safety of a remote location to a potential hazardous situation. Weatherproof – Environmental enclosures protect radio electronics from the elements allow operation in all weather conditions and environments. Full Camera Control – Provides same camera control and functionality as hard wired system through VSMC084WP Weatherproof Monitor/Controller. Multiple Control Locations – Monitor and control the INTEC Video Sentinel System from multiple remote locations. Portable Case or Fixed Mount Monitor/Control – Monitor and Control the camera from a fixed weatherproof location or the available fully integrated portable pelican case. Optional Encryption - Secure Video Transmission with Micro-View Lock II Video Encoder (TX) / Decoder (RX).
Transmitter Specifications
- Video Input
- 1 Vpp, 75 Ohm
- Signal to Noise Ratio
- 60 dB
- Power Requirement
- 12 VDC
- RF Output
- VSFRCAMTRX2WP -.25 - 2 W
- VSRFCAMTRX5WP - 2 - 5 W
- S-Band: 2200 - 2500 MHz
- L-Band: 1700 - 1850 MHz
- Inputs / Outputs
- Video Sentinel Camera, Data Antenna,
- Video Antenna, Power
- Connectors
- Power and Camera -Amphenol,
- Video Antenna -TNC, Data Antenna - RPSMA
- Construction
- Hoffman 1008 CHNF Series
- Finish
- Black Paint
- Environment
- NEMA Type 4 All Weather
- Temperature (C)
- -30 to +70 Degrees
- Weight
- 11.5 lbs.
- Dimensions (H x W x D)
- 4.0" x 8.0" x 10.0"
- Mounting
- External Wall Bracket
Receiver Specifications
- RF Input
- 50 Ohm, +5 dBm<
- Video Output
- 2, 6Hz-7.5MHz, 1 Vpp 75 Ohm
- Power Requirement
- 12 VDC
- Inputs / Outputs
- VMC084WP Monitor / Controller,
- Data Antenna, Video Antennas (x2),
- Power Input
- Connectors
- Power, Monitor/Controller -Amphenol,
- Video Antennas -TNC,
- Data Antenna - RPSMA
- Construction
- Hoffman 1008 CHNF Series
- Finish
- Black Paint
- Environment
- NEMA Type 4 All Weather
- Temperature (C)
- -30 to +70 Degrees
- Weight
- 11.5 lbs.
- Dimensions (H x W x D)
- 4.0" x 8.0" x 10.0"
- Mounting
- External Wall Bracket
