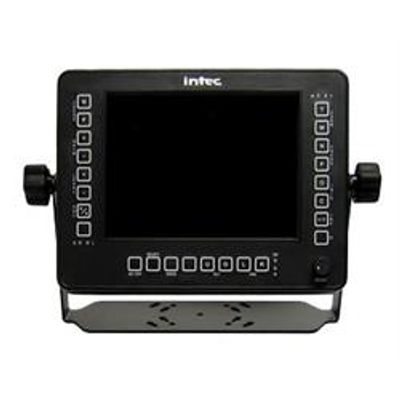

Intec - Model VSMC084WP -Weatherproof Monitor for Security Cameras
8.4” Color LCD - Contrast and backlight enhanced with anti -glare coating provides superior image quality in all lighting conditions. Weatherproof - Environmentally sealed housing allows for exterior mounting applications. 500 nit High-Bright Performance - Provides a sunlight viewable display with adjustable brightness. Integrated System Control - Integrates all Video Sentinel System control functions of both Color Zoom and Thermal Imaging Cameras and Remote camera Mount (Pan / Tilt). Single Weatherproof Connection - All function and power signals are made through a single connector. Universal Mounting Bracket - Adapt to any vertical or horizontal mounting surface. Wireless Compatible - Universal to both hard wired and wireless system configurations.
- Display Size
- 8.4"
- Pixel Format
- 640 (H) x 480 (V)
- Pixel Configuration
- R, G, B Vertical Stripe
- Display Type
- Active Matrix Color TFT 6-bit
- Viewing Angle (H x V)
- + / - 70 x +40 / -70
- Luminance
- 500 nit
- Contrast Ratio
- 300 : 1
- Video Input
- NTSC Composite
- Power Requirement
- 12 VDC
- Inputs / Outputs
- Video, Data, Power
- Construction
- Cast / Machined 356 T51 Al Alloy
- Finish
- Powder Coat Black
- Temperature (C)
- -10 to +65 Deg (Operation)
- -30 to +70 Deg (Storage)
- Weight
- 8.4 lbs.
- Environment
- All Weather
- Monitor Controls
- On/Off, Camera to Display
- Wiper ON/Off, Pan/Tilt
- Color Zoom Camera Controls
- Zoom: Tele, Wide, 2x Digital
- Focus: Near, Far, Auto On/Off
- Iris: Open, Close
- IR Cut Filter: On/Auto/Off
- F1: Special Functi on
- Thermal Camera Controls
- Focus: Near, Far
- Gain: Auto/Manual, Up/Down
- Level: Auto/Manual, Up/Down
- Polarity: White Hot/Black Hot
