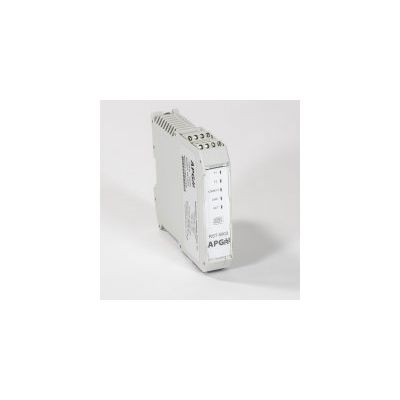

APG - Model Series RST-5003 -Web Enabled Control Modules
The RST-5003 offers affordable remote tank monitoring by taking your 4-20 mA or modbus RS-485 device and posting the readings to a secure website, sending you an email or a text alarm to your cell phone. Connect up to 10 sensors using the RST-5003 Series as the master for an RS-485 network.
Inexpensive Communications
Unlike competing methods for remote monitoring, the RST-5003 simply connects to a pre-existing Internet connection via an Ethernet cable - be it landline, radio, cellular, or satellite.
Extremely Easy Set-Up
Simply connect the RST-5003 web enabled control module to any Tank Cloud daisy-chain network, or any 4-20mA sensor, via the input terminal and plug in an Ethernet cable. The module will send sensor data through the Ethernet cable to a local area network or the Internet.
Local and Remote Alarming
In addition to the alarming options with our online data portal, the RST-5003 control module has up to two isolated solid-state relays for local alarms and control.
RST-5003 series Web Enabled Modbus Network Controllers connect APG Tank Cloud sensors to the cloud, as well as any 4-20mA sensor. You`ll need this connection module unless you`re using an LOE as your Tank Cloud master.
- Enclosure Protection:N/A
- Input:Modbus,4-20 mA,Tank Cloud Master,0-2 Switches
- Mount:Din Rail
- Output:Modbus,TCP/IP,2 Relays,0-2 Isolated SSR
- Performance
- Local Alarm : 2 Isolated Solid-State Relays
- Remote Alarm
- Text (sms) Alarms (requires online service)
- Email Notifications (requires online service)
- Programming
- Method
- LAN (module embedded website)
- Internet
- Scaling Options
- Volume, Level, Distance, Weight
- Other user-defined units
- Electrical
- Power Over Ethernet Option
- 48 VDC POE (requires POE injector or switch)
- 24 VDC output to power sensor
- DC Powered Option
- 24 VDC supply, No POE injector required
- Current Draw
- 40 mA at 48 VDC
- 130 mA max (Isolated SSRs)
- Physical
- Housing : Polyamide
- Mounting : 33 mm Din-Rail
- Approvals : N/A
- Connectivity
- Input : RS-485 Modbus, 4-20mA, 0-2 Discrete Switches
- Output
- Ethernet TCP/IP
- 0-2 Isolated Solid State Relays
- Data Portals
- Online
- LAN
- Environmental
- Operating Temperature : -40 to +140°F (-40 to 60°C)
