Franklin - Model WS-72 -Web Seam Welder
The WS-72 web seamer station is equipped with a Lincoln Power Wave AC/DC welders and Max-Sa controls. The WS-72 utilizes unique magnets that pull the web plates down to the copper back-up bar. The copper back-up bar is designed with a small flux groove and is fixtured into an aluminum water-cooled sub-bar.

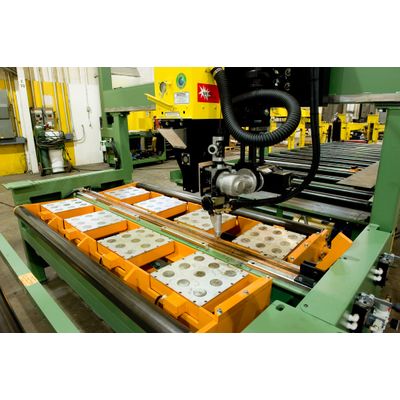

The WS-72 Web Splice Station incorporates “pull down” type magnets. This unique design provides adequate power for sheets up to ½” while providing the operator an open easy to access weld area without top clamps.
WS-72 Control Station Provides the Operator Control over all Conveyors, Hydraulic Web Squaring and Weld Speed Control. The Lincoln MAX-SA10 control Panel is Integrated for easy access and Speed Control.
Franklin “3015” Gantry system with dual-row magnets provide web pick and placement at the WS-72 web splice station. Due to various shapes and storage methods, the gantry is controlled by a 4 -position joystick control.
- 72” maximum web width
- Vacuum recovery system
- ½” web thickness
- Water-cooled backup bar. (water chiller optional)
- AC/DC Power Wave
- Material pull-down magnets
- Operators station with 10-A control
OPTIONAL WEB ROTATOR
- 180-degree rotation for stacking tapered webs
- Heavy duty bearing with Hydraulic slew bearing
