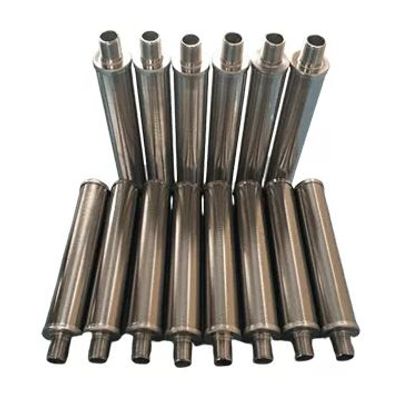

Saifilter - Wedge Screen Nozzle
Screen nozzleis economical and clog-free, and it is suitable for use as a collector or distributor. We can offer tapered and threaded connections that can be directly screwed into the nozzle plate. Or we can use parallel thread to make wedge-shaped wire nozzle secured to the nozzle plate by a locking nut. Whether the common baseboard or rubber sheet lining baseboard is used, a suitable solution for fixing the wedge wire nozzle will be offered.
It is usually used in water treatment processes such as ion exchange. A large number of wedge wire filter elements are uniformly fixed on the round nozzle plate at the bottom of the container. The screen nozzle will retain resin medium and uniformly collect and distribute the technological process.
The size of screen nozzle, space and quantity are crucial for the guarantee of high efficiency and low-pressure drop. In the process of ion exchange, the size of the screen nozzle slot is usually 0.2 mm. The circular design is very suitable for high-pressure applications and can completely replace the non-metal screen nozzle of the existing installation.
