SCV - Model API 600 -Wedge Valves

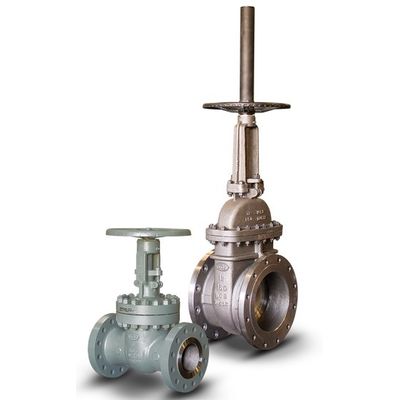

SCV VALVE manufactures superior cast body, bolted bonnet OS&Y gate valves in a variety of materials, trims, packing types, sizes (2” thru 48”) and pressure classes (150 thru 2500).  The mechanical characteristics make the SCV wedge gate valve are ideal for bi-directional “total flow system open/shut-off” applications with minimal turbulance and pressure drop.

The valve design conforms to API 600 and B16.34.  Face-to-face and end-to-end dimensions conform to ANSI B16.5 and B16.25.

• Basic Design: API 6D & ANSI B16.34
• Wall Thickness: API 6D
• Face-to-Face Dimension: ANSI/ASME B16.10
• Flange End Dimension: ANSI/ASME B16.5 (2’ to 24”) MSS SP-44 (26”>)
• Butt-Weld End Dimension: ANSI/ASME B16.25
• Inspection & Testing: API 6D

• Class: 150; Sizes: 2" - 48"
• Class: 300; Sizes: 2" - 48"
• Class: 600; Sizes: 2" - 42"
• Class: 900; Sizes: 2" - 24"
• Class: 1500; Sizes: 2" - 24"
• Class: 2500; Sizes: 2" - 12"
