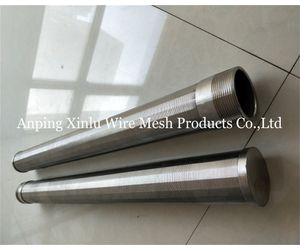

FY-XL - Model 014 -Wedge Wire Filter Cartridge
Wedge Wire Filter Cartridge Main Specifications of the Wedge Wire Cartridge Materials: stainless steel grades 321, 304, 304L 316, 316L, 904L, Hastelloy alloy, galvanized carbon steel Diameter: 29mm, 32mm, 34mm, 42mm, 45mm, 54mm, 58mm, 62mm, 70mm, 84mm, 94mm or custom diameter Slot opening size: 0.05mm~15mm Length: 100mm~4000mm Features 1. The filter cartridges are welded for strength and longevity. They also feature slots distributed in a uniform manner along a smooth surface. 2. They feature an excellent resistance to corrosion, heat, pressure, and wear. 3. The filters have an precise tolerance and large flow capacity. 4. A deburred screen has no sharp edges or corners, and allows the filter cartridge an easy operation and disassembly. 5. They can also withstand extreme temperatures. The wedge wire filter cartridge is made of vee-wire wrapped in a circular manner around stainless steel support rods. The smooth profile wire surface is where the filtration a
Stainless steel Wedge Wire Johnson Filter Cartaridge Features
1. The mechanical strength is high and can withstand high pressures;
2. The filter gap is uniform, can form a relatively uniform filter cake, which is conducive to backwash regeneration;
3. The wedge-shaped filter gap can improve the backwash regeneration ability;
4. Pressure, temperature, anti-aging, anti-corrosion, can be applied to filter a variety of fluids.
5. The wedge mesh filter(Johnson pipe) are made of metal wedge wire with Rolling and welding technology, which has the advantages of high mechanical strength, high pressure resistant, easy flushing and regeneration, etc. Nearly two-dimensional filter has no dead spots of particle accumulation, and the wedge-shaped gap is reversed. The back-washing energy can be gathered when flushing, and the back washing effect is good.
