In 1997, Bluslot became one of the earliest manufacturers of wedge wire screen (v wire screen) in China. We have accumulated more than 20 years of production experience.
Most popular related searches
wedge wire screen
basket strainer
filter element
wedge wire screen filter
wedge wire filter
screen filter
wire screen filter
strainer
drum strainer
screen strainer
our products include:
- Filter Element
- Screen Panels
- Cylinder
- Basket
- Strainer
- Drum
- Nozzles
- Grate
What is a wedge wire screen?
A wedge wire screen is a metal filter product with high mechanical strength and a self-supporting structure.
It is made of two parts: a V-shaped profile wire and T-shaped (triangular) support rod, which is welded through the ring fusion welding process. The profile wire is the filtering surface, and the supporting rod plays a supporting role.
Compared with other metal filter cores: Firm structure, stable filtration accuracy, not blocked, high opening area.
- Material
Low carbon galvanized wire, stainless steel 304, 316, 316L, 321, 904L, 2205, 2507, C276… - Minimum diameter

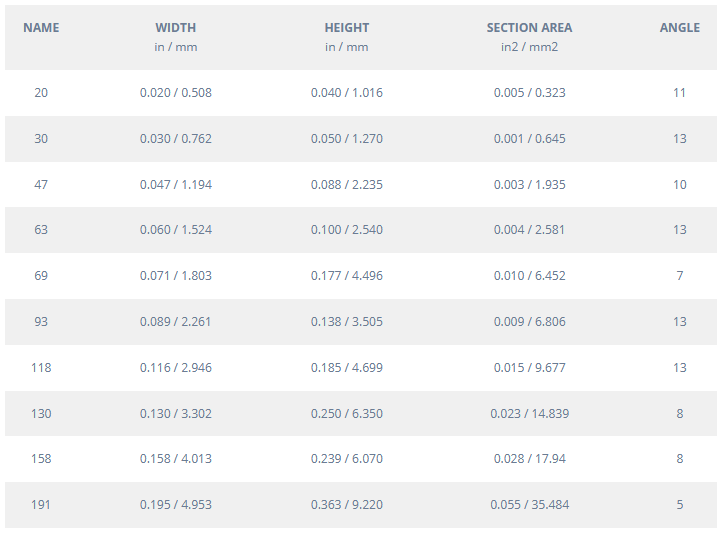

Positive volume(the support bar is inside): 16mm - Common profile wire and support wire
#63, #69 | #93. - Filtering accuracy (slot size): 10 microns and above
(common: 20, 50, 100, 200, 250, 300, 400 micron) - Wedge Wire dimensions
Width of the wire: 0.75mm, 1mm, 1.5mm, 1.8mm, 2 mm, 2.5mm, 3mm.
Height of the wire: 2 mm, 2.5mm, 3mm, 3.5mm, 4.5mm.
The specification of the wire can be customized according to the customer’s requirements. - Types
FITO & FOTI
