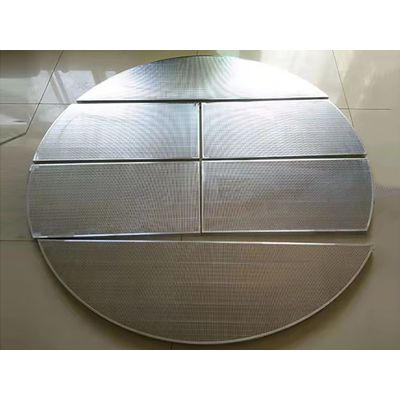

Btoslot - Wedge Wire Screen Support Grid
The support grid is composed of steel frame, grille, wedge wire mesh and other accessories. The support grid designed and manufactured by our company has high strength, light weight and easy installation. It is widely used in petrochemical, chemical fiber, water treatment and other industries.
Stainless steel wedge wire screen support grid is a flat screen.It has multiple frame options and designs,mainly have wedge wire screen,frame and other accessories..There are whole type and joint type support grids for choice.This allows for easy on-site assembly, retrofitting and transporting sections through existing manways. These self-supporting structures have exceptional resistance to collapsing and buckling, even in operations where screens must bear extremely high loads. Media support grids fabricated with Wedge Wire are a good choice when dealing with retaining media in vessels of all types.
False bottom screens can be constructed using round support rods or rectangular support rods.Wedge wire screen is the preferred false bottom for lauter tun tanks in many breweries. The stainless steel wedge wire screen can be made in sections to fit through any man-way. Stainless steel welded v wire sieve mesh filter screen panel can be designed and manufactured according to customer specifications
- Wedge wire screens are never locked or inserted by the objects.
- Due to the different pressures between inside from outside,it could be very easily to clean the plugging material.
- High filtering accuracy, high strengh and durability.
- We can produce Customized Product.
- High strength and high open area
The continuous slot formed by V-shaped surface wires ensures a two-point contact between the particles and the slot to minimize clogging.The wedge wire screen support grids are very important to provide uniform flow collection They are widely used in the carbon filters, molecular sieves. steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We can design and manufacture standard steel grating and in customized shapes per client’s requirements steel structure platforms, stair treads, sidewalks, drainages and well covers etc.
- Material:304/304L/316/3016L/321/nickle alloy
- Diameter Range(MM): 200mm To 2500mm. Diameter Customized
- Slot: 0.5mm,0.6mm,0.7mm,0.8mm,1.0mm,customized
- Sections & shape: 1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized
- Wedge wire: 1*2mm,2*3mm,3*5mm,4*7mmm and so on
- Support rod: 2*3mm,3*5mm,4*7mm
