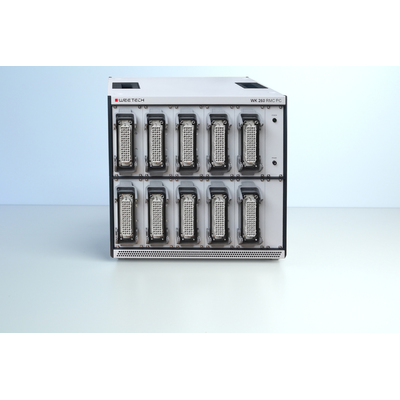

WEETECH - Model WK 260 RMC -Railway Industry Low Voltage Tester
The WK 260 RMC is a low voltage connection and component tester tailored specifically for the railway industry. This device offers a reliable and cost-effective solution for testing electrical connections under low voltage conditions. It adopts the sturdy mechanical attributes of high voltage testers while integrating the rapidity and dependability of the WK 260 PC series. Users have the flexibility to choose the industrial output connectors best suited for their testing requirements. The tester's user-friendly design ensures quick, efficient operation and setup. It provides graphical fault displays to promptly locate and identify issues in the test unit. When operated in AutoStart/CommandBlock mode, faults are continuously monitored and displayed until resolved. The WK 260 RMC can connect with a variety of peripheral devices via its integrated PC, and it is housed in a robust 19-inch chassis to withstand industrial environments. It supports diverse testing needs with expandable options and features an adaptable test point matrix for precise results.
The WK 260 RMC is the fast, reliable and inexpensive low voltage tester for the needs of the railway industry. It combines the mechanical properties of our high voltage testers with the advantages of the fast and reliable WK 260 PC. You decide which industrial output connector is used on the tester. Benefit from the intuitive operation and installation to test quickly and reliably.
Faults can be displayed graphically and therefore localized very quickly in the unit under test (UUT). During the AutoStart/CommandBlock modus, identified faults are tested continuously in the background and kept displayed until they have been solved. A broad range of peripheral devices can be connected to the tester through the running PC.
- Tests of cables and harnesses
- Tests of electrical components
- Tests of subassemblies, e.g. in the automotive industry
- Connection test
- Short test
- Component test
- Functional test of switches and push buttons
- Functional test of relays
