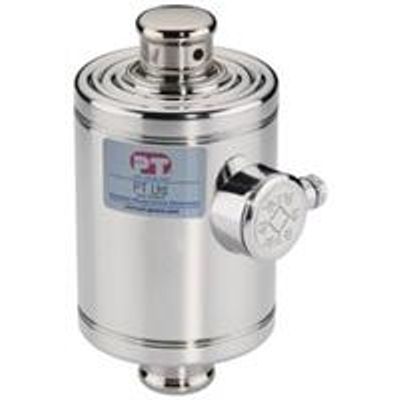

PT Limited - Model IP67 - HPC -Weighbridge Compression Load Cell (30t - 45t)

Purpose designed to meet the needs of the weighbridge and truck scale manufacturer, the cell is supplied in two optimum capacities of 30t and 45t.

To ensure the exceptional performance of the HPC is optimised, PT offer specially designed mounting accessories.

The HPC has formal approval in many countries for both capacities. It has a three-year warranty and is supplied individually packed with a detailed accuracy certificate traceable by serial number.

• Road weighbridges
• Rail weighbridges
• Tanks and hoppers

• Welded stainless steel enclosure
• Anti-rotation fitted as standard
• Smart technology single column design
• Heavy duty braided 6 core cable

• Nominal Capacity: 30t and 45t
• Signal output at capacity: 2±0.002 mV/V
• Linearity Error: < 0.02% FSO
• Non-Repeatability: < 0.010% FSO
• Combined Error: < 0.023% FSO
• Hysteresis: < 0.023% FSO
• Creep/(30 mins): < 0.020% FSO
• Zero Balance: < 1% Capacity
• Temperature Effect On Span/10ºC: < 0.010% FSO
• Temperature Effect on Zero/10ºC: < 0.015% FSO
• Operating Temperature Range: -30 ~ 65 C
• Compensated Temperature Range: -10 ~ 50 C
• Storage Temperature Range: -50 ~ 85 C
• Excitation +ve: RED
• Signal +ve: GREEN
• Sense +ve: BROWN
• Service Load: 100% Capacity
• Safe Load: 150% Capacity
• Ultimate Load: 300% of Rated Capacity
• Tilt (max sideways travel): 7.5 mm from centre
• Input Resistance: 750O ± 10O
• Output Resistance: 704O Matched  ± 0.2O
• Insulation Resistance: > 5000 MO (@50 VDC)
• Excitation Voltage (Rec): 5 ~ 18 V AC/DC
• Excitation Voltage (Max): 20 V AC/DC
• Material: Alloy/Stainless Steel
• Sealing: IP67
• Cable:
• 12m long, 7.5 mm dia
• 6 core x 0.24mmª (24AWG) PE,
• braid screen, PUR sheath
• Excitation -ve: BLACK
• Signal -ve: WHITE
• Sense -ve: BLUE
