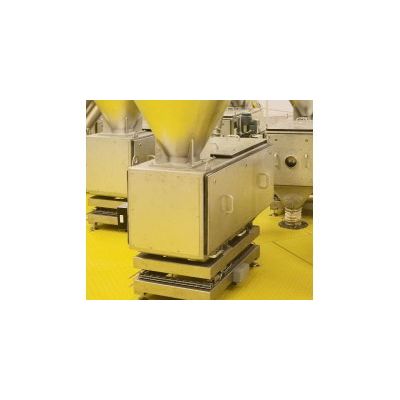

MULTIDOS - Model L Series -Weighfeeder
MULTIDOS L series weighfeeders complement the product line with low feed rates. The lightweight design and easy accessibility through large inspection openings of the parts in contact with the product make the MULTIDOS® L especially suitable for use in the food processing and food industry. All parts in contact with the goods fed into it are made out of stainless steel.
Economical and cost-effective integration
The product’s high-quality measurement and control electronics enable extensive monitoring of the weighfeeders and allow easy, cost-effective integration into the plant controls; this is especially true for the MechaTronic version.
Special features:
- Wide performance range. Quick clean design.
- Simple belt change with no auxiliary equipment. Gentle product handling.
- Wide performance range
- MechaTronic design with integrated electronics
- Quick clean-out
- Easy belt change without auxiliaries
- Standard stainless steel housing
- All contact parts of stainless steel
SCHENCK weighfeeders are used for continuous feeding of bulk solids in gravimetric mode. Application-oriented variants and high-quality standards offer economic solutions that satisfy even the most sophisticated requirements. High-quality measuring, control, and supervisory electronics enable comprehensive monitoring of weighfeeders, and the MechaTronic design ensures easy integration into Ihe plant control system at reasonable cost.
Customer`s benefits:
- Minimal investment, operating and maintenance costs
- Easy installation, low space requirements
- Improved accuracy and quality of final product.
The standard variant comprises:
- Rugged mechanical system
- Mechanics removable from the side, drive via plug-in coupling
- Automatic belt tracking system
- Static belt tension through spindles integrated in frame
- Belt influence compensation (BIC)
- Plough scraper (diverting tramps on return belt)
- Belt outside scrapers
- Dedusting socket
- Material bed depth adjustable from outside
- Contact parts of stainless steel 1.4301; US grade 304
- All plastics FDA-approved
- Inert gas blanket 10mbar
For the many and varied applications, the following accessories/options are available:
- Contact parts of stainless steel 1.4571; US grade 316Ti
- Settling chamber for fine materials Feed screws
- Plexiglass window in inspection covers
- Dust collecting and discharge hoppers
- Special equipment package for secondary fuels and light materials
- Housing pressure-proof to 0.3 bar
- ATEX variants 2D; 3DContact parts of stainless steel 1.4571: US grade 316Ti
Operating Principle:
The mechanical system is designed for;
- Direct discharge using specified hopper
- Material infeed with settling chamber for line materials
- Screw feeding
- Block mode with prefeeder
The MULTIDOS L weighfeeder is suited both for continuous feeding and batching of bulk solids.
