Model Boomerang -Weighing System for Excavators and Loaders

SHARE
The Boomerang weighing system is designed for use in industrial excavators and loaders, providing real-time weight measurements of materials handled, utilizing a highly efficient microprocessor card. Its compact design ensures minimal obstruction and integrates seamlessly with existing cabin instrumentation, enhancing operational efficiency without compromising machine aesthetics. This system leverages precise angular sensors placed on the drilling and lifting arms, facilitating weight calculation by measuring the angles formed during carriage and boom movements. Capable of memorizing weighing points along the boom's lift path, it ensures adaptability to various tasks. Furthermore, the Boomerang system incorporates flatness sensors to adjust for carriage inclinations and compensates for bucket ascent speed variations. The system offers extensive data management capabilities, such as customizable databases for up to 1,000 goods and real-time activity logging through its BLACK BOX feature. It supports TO-4 production data transfer and optional receipt printing for comprehensive operational documentation.
Most popular related searches
weighing system
excavation system

At its heart is a microprocessor card that guarantees a calculation speed such that at any time and position the system can detect the weight of the material being handled. time and position of the machine
the system is able to detect the weight of the material being handled. Its design is revolutionary above all in its concept of space and weight, in fact, it is so compact that it never obstructs the external view, light enough not to create any problems for the structure of the machine, and so elegant elegant as not to spoil the harmony of the instrumentation already present in the cabin.

  • Weighing up to the first quarter
  • Freely storable weighing height
  • Weighing in any position
    Speed compensation
  • Flatness compensation
  • Accuracy ± 1 % – ± 2 % G.W. (total gross weight)

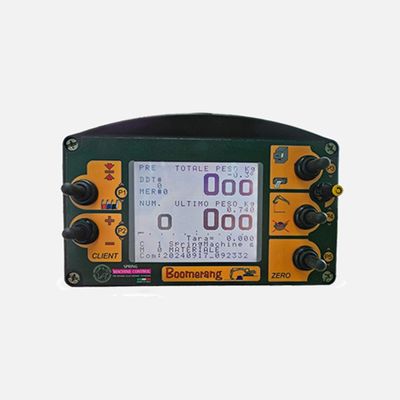

Large graphic display with 16 lines of text, backlit. Information on:

  • Total Weight
  • Last Weight
  • Number of Weights
  • Goods and Customers

The toggle buttons allow the activation of the function even under extreme working conditions.

Boomerang is equipped with a quick release connector that makes it extremely easy and fast to quick to remove or transfer the instrument from one machine to another.

Thanks to Boomerang, the operator can work freely, avoiding loss of time, as:

  • must not stop the lifting arm
  • must not position the drilling arm
  • does not have to weigh before rotation

Boomerang consente di memorizzare il punto di pesatura ad una altezza a piacere lungo l’escursione del braccio sollevatore.
Questa caratteristica permette all’operatore di adeguare il sistema di pesatura al lavoro che sta svolgendo.
