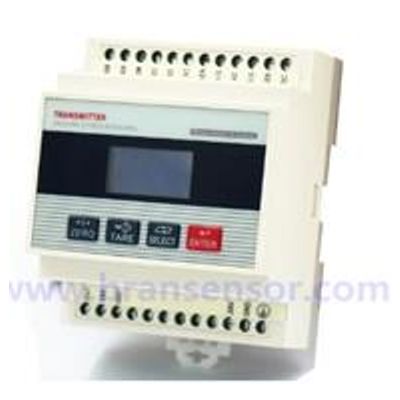

Brans - Model BIN-108 -Weight Transmitter

Use for turning the analog force signal to digital output, the standard analog output signal and simple control of the occasion.

Most popular related searches

Analog output signal could be 0～20mA、4～20mA、0～24mA、0～5V、0～10V、-5V～+5V、-10V～+10V
Digital communication interface as RS485 or RS232
OLED displayer, could display real time weight value and peak value
Controller with the upper, middle and lower limits judgment
I / O 4 input and 6 output, you can customize the input and output port function
Can be driven by the host computer controller output, can be part of the alternative PLC
DC24V power supply, voltage ± 5V, more secure and stable
35mm standard industrial DIN rail

Features & Applications
