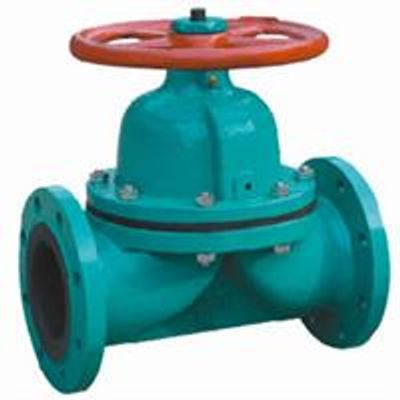

Jireh - Model JR-DM-01 -Weir Type Diaphragm Valve

It is special for controlling the noncorrosive or the strong corrosive media. Its body inner surface is unlined or lined with different fluorine plastics which can be selected to suit with different working temperatures and fluid pipelines. Suitable temperature: £85°C, siOO`C £120`C, siSO`C according to the materials of lining and diaphragm
