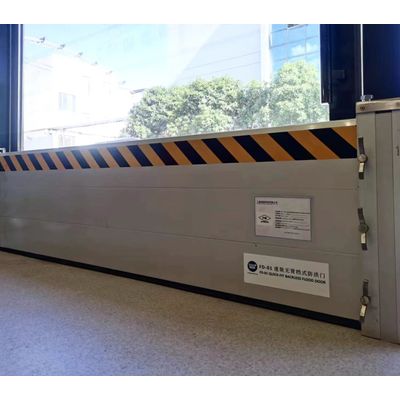

Weiwang - Flood Door
The Flood Door is a special door to prevent flood from flowing through the entrance to the building when flood disaster occurs. It is applicable to the entrances and exits of buildings, subway stations, underground traffic passages, important underground equipment rooms and underground garages, as well as the flood control of low-lying buildings. Multi-short aluminum alloy multi-piece modular flood baffle, can also be made into a flood wall or embankment.
6140Height*1060Weight mm, 5 gate plates. Specific size can be customized according to customer requirements.
GB 50201-2014 (Flood Control Standard)
17J610-2 (Special doors and windows)
FM 2510 (Flood abatement equipment test standard)
FM Global 1-40 Property Loss Prevention Data Sheets: Locate all of the following on floors and in areas above the predicted 500-year flood elevation plus 0.6 m.
The product is light and solid, integrated, and resistant to ultra-high water pressure. Special waterproof strip design, high temperature, acid and alkali resistance, not easy to deform. With the design of no backstop, it can be assembled quickly in a short time.
This product has passed FM certification and national standard testing.
It is composed of embedded base (stainless steel), ground horizontal track (stainless steel), sealing strip, wall positioning piece, top compression piece, main body/section track, side compression bolt, compression column and baffle.
