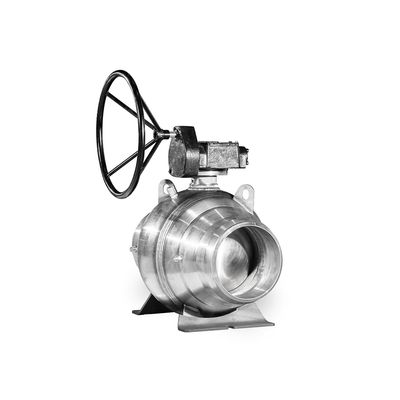

Kurvalf - Welded Ball Valve
Fully welded ball valves are used in pipelines on welded jointed spools due to their strong structure and low maintenance needs. They are generally preferred in underground and aboveground applications. Their design provides a lightweight structure and optimum level sealing.
Size Range: 2" - 56"
Pressure Ratings: ANSI 150 - 2500
Bore: Full - Reduced Bore
End Connections: RF - RTJ - BW - SW
Valve Size: 2″ – 56″
Valve Type: Trunnion
Body Type: Fully Welded
Pressure Class: ANSI 150 / 300 / 600 / 900 / 1500 / 2500
End Connection: RF / RTJ / BW / SW
Bore: Full Bore / Reduced Bore
Operator: Lever / Gear / Actuator
Material: Carbon Steel / Stainless Steel / Duplex / Alloy Steel
Operating Temperature: Standard / High
Leakage Class: API 598 / ANSI FC70-2 / ISO 5208
Design Standard: ASME B16.34 / API 6D / ISO 14313 / ISO 17292
Face to Face Standard: ASME B16.10
End Connection Standard: ASME B16.5 / ASME B16.25 / DIN EN 1092-1
Test Standard: API 6D / API 598 / ISO 14313
Fire Safe Standard: API 607 / ISO 10497 / API 6FA
Certification: EN 10204 3.1 – 3.2 / ISO 15848 Fugitive Emission / 2014-68-EU PED / SIL Capable / IP 67 (Gearbox)
Isolation Type: DBB / DIB-1 / DIB-2
- Due to low torque values, smaller actuator can be selected.
- The actuator selection is automatic.
- Weld ends are beveled according to customer requirements.
- Fixed lifting lugs on the valve.
- Emergency sealing fittings are a default feature.
- Blow-out-proof stem.
- Locking device is optional.
- Available with metal and soft seats.
