Aquaconsult Anlagenbau GmbH
Aerostrip - Welded Manifolds

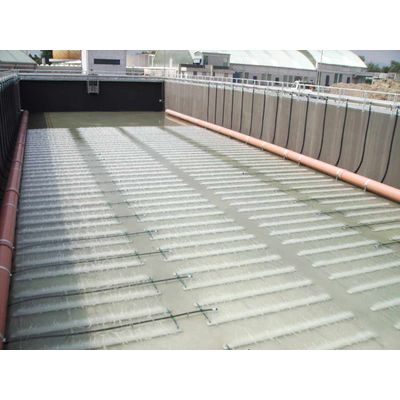

Welded Manifolds are the modern Plug&Play solution for supplying the AEROSTRIP with air. Depending on the requirements of the aeration system and the reactor geometry, the AEROSTRIP manifolds are delivered custom-made. This enables easy and quick assembly.
Most popular related searches
activated sludge treatment
sludge processing
activated sludge
fine bubble diffuser
fixed activated sludge
bubble diffuser
strip aerator
wastewater treatment
aeration system
aerator
- optimal dimensioning – low pressure drop
- inexpensive prefabrication in the factory
- easy & quick assembly
- fine bubble diffuser with extremely low energy consumption
- up to 20 years lifetime for progressive sustainability
- efficient oxygen transfer for optimal wastewater treatment
- since 1995 successfully used by more than 2.500 systems
- development from pioneer to global leader
- low-maintenance and reliable in use
- conventional activated sludge process (Plug flow, fully mixed, circulating tanks, single and multi-stage…)
- activated sludge process - intermittent operation (SBR, CSBR, Triple-A)
- activated sludge process with high amount of solid matters (MBR)
- granulated sludge process (Nereda)
- combination of fixed bed and activated sludge (IFAS)
- floating fixed bed (MBBR)
- nitrogen decomposition – deamonification process (DEMON)
- oxygen transfer efficiency (SOTE) up to 60%
- standard aeration efficiency (SAE) from 4 - 6 kgO2/kWh
- wide range of application from 5 - 150 Nm³/h/m² diffuser area
- optimal perforation for every application
- lowest flow resistance due to flat design and installation on the pool floor
- low maintenance effort
- membrane lifetime up to 20 years
- low costs due to high efficiency
These extraordinary properties of the AEROSTRIP have been confirmed by numerous test series.
