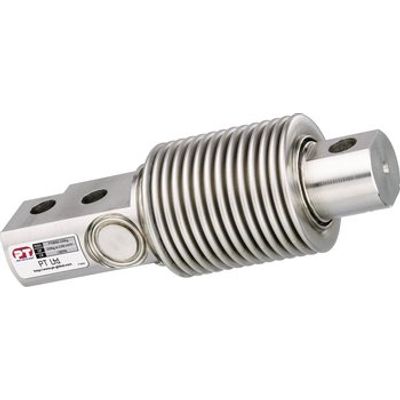

PT Limited - Model PT8000 -Welded Stainless Bending Beam Load Cells (5kg - 500kg)

Ideal for harsh environments and high wash down areas, PT8000 is widely used in food and marine industries. Common installations include belt weighing as well as weighing and packaging machines.

The industry standard size and shape allows for replacing many bending beam models. It has less than 0.4mm deflection at full load, a safe loading of 150% and an ultimate load of 300%.

In addition to its compact footprint (typical across all eight capacities), PT8000 has a great range of mounting accessories to optimise performance and extend the life of the load cell.

• Nominal Capacity: 5kg ~ 500kg
• Signal Output at Capacity: 2mV/V ± 0.1%
• Linearity Error: < 0.020% FSO
• Non-Repeatability: < 0.010% FSO
• Combined Error: < 0.025% FSO
• Hysteresis: < 0.020% FSO
• Creep/Zero Return (30 mins): < 0.025% / 0.017% FSO
• Zero Balance: < 1.000% Capacity
• Temperature Effect On Output/10°C: < 0.010% FSO
• Temperature Effect on Zero/10°C: < 0.015% Capacity
• Compensated Temperature Range: - 10 ~ 40°C
• Operating Temperature Range: - 30 ~ 80°C
• Service Load: 100% of Rated Capacity
• Excitation +ve: RED
• Signal +ve: GREEN
• Safe Load: 150% of Rated Capacity
• Ultimate Load: 300% of Rated Capacity
• Input Impedance: 415O ± 15O
• Output Impedance: 350O  ± 3O
• Insulation Impedance: < 5000 MO at 100V DC
• Excitation Voltage (Rec): 5 ~ 12V AC/DC
• Excitation Voltage (Max): 15V AC/DC
• Deflection at Rated Capacity: < 0.4mm
• Cable Type: 4.5mm, Screened, PUR Sheath
• 4 core x 0.24mmª (24 AWG)
• Cable Length: 3 Metres
• Net Weight: 0.45kg
• Material: 17-4PH Stainless Steel
• Excitation -ve: BLACK
• Signal -ve: WHITE
