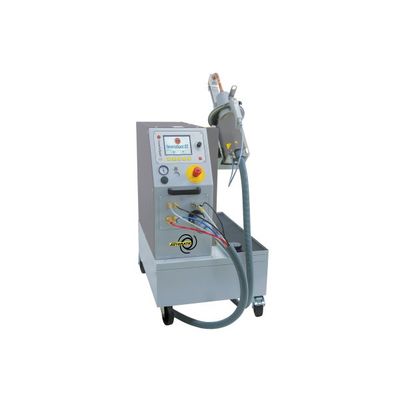

WS InverterSpot - Welding Machine 400V
The GT automatic recognizes and measures the sheet metal configuration automatically. The parameters pressure-amperage-time are perfectly and automatically managed and regulated. Working in Automatic mode no need for manual settings.
Most popular related searches
Manuel Mode
Expert Mode
Program-Saving-Mode
OEM programs
Self-programming via frontboard
HF-inverter-technology / 10.000Hz. welding current up to 13.000 A (on the job)
C-trafo-gun
- C-gun in compact design
- Electrode arms versatile in use
- Welding cable up to 5 m
- Water cooling up to the tips
- Magnet field exposure and stress far the norms (EU-Richtlinie 2004/40/CE, EN50505, EN62135-2:2007 und BGV V11/2001)
- Welding data saved on SD card
- Tracability up to 100.000 welds- paper print out
Operation
- Simply, multi-lingual menu
- Updates via SD card - via internet possible
- Universal programs and professional programs
- Packing unit: 1 pc.
- Continuous output: 35 kVA
- Net weight: 122,00 kg, 122.00
- Flow volume: 5 l/min., 5l/min.
- Power connection: L1+L2+L3+PE, L1xL2+L3+PE
- Protecton category: IP 21, IP 20
- Setting ranges: 0 -13 kA, 0-13 kA
- Welding current: DC, AC
- Electrode pressure max.: 6,2 kN
- Tank capacity: 80 l
- Temperature class: A
- Power supply (Cu): 4x6 mm² / 10 mm
- Fuse: 32 A
- Leistung max. (5% ED): 156 kVA
- Specifics: OEM Approval
- Supply voltage: 3x400V
- Open-circuit voltage: 12 V DC
- Continuous operation: 2,8 kA
- Frequency: 50-60 Hz (+/- 10%)
- Welding current max.: 13 kA
- Noise level: < 70 db(A)
- LängexBreitexHöhe: 810x560x750 mm
- Gross weight: 122,000 kg
- Lenght: 10 m (power cord)
- Working pressure: 6-8 bar
- Certificatons: CE, CE, UL, CCC
