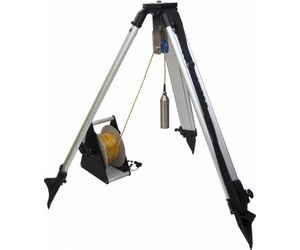

PASI - Model Well-Camera.1N -Well and Borehole Camera
Taking advantage of our vast experience in designing and manufacturing TV-inspection systems for boreholes and wells, we created the innovative WELL-CAMERA Series that follows all our Customer’ requests about an easy use, reliable, compact and lightweight instrument for field operations. The complete system consist of: reel and camera head, display unit with integrated LCD, USB2 grabber board and microphone, battery charger. Pictures, movies and comments can be saved to any external laptop. 12V internal battery power supply; possibility to be connected also to any external 12V battery. The 120° wideangle view allows the use of WELL-CAMERA to evaluate the status of the filtering columns inside freshwater wells. A 90° View Option is also available, together with its centering device.
A complete WELL-CAMERA system consists of:
- reel and camera head
- control unit with integrated LCD, USB 2.0
- grabber board and microphone
- battery charge
Supplied complete of software and USB cable for display and recording of pictures, movies and vocal comments to any
external laptop.
- Power supply: internal or external with 12V batteries, up to 6 hours of autonomous continuous use in the field.
- Sensor: CCD 1/3”
- Display: 9” TFT LCD, 16:9 or 4:3
- Digital output: via USB 2.0 port and microphone for audio and video comments for recording directly on the external PC
- Analogue video output: via BNC connector
- Weight: 15 kg (complete 100-metre system)
CAMERA HEAD - Diameter: 40mm
- Length: 150mm
- Sensor type: CCD 1/3"
- Resolution: 700 lines
- Lighting: 8 high-efficiency LEDs (regulated by knob, max. 200 lumen)
- Degree of waterproofing: IP68, waterproof up to 350m
