FCE - Well Testing Equipment

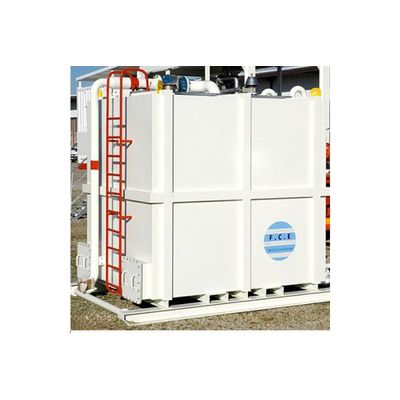

Our surface well testing equipment range includes most of the Conventional equipment such as: Processs; UPSTREAM PROCESS: 5000 /10000 psi Sand Filter. 5000 /10000 /15000 psi floor Choke Manifold. 2500 / 5000 psi Indirect Heater. DOWNSTREAM PROCESS: 600 /1440 psi 3-Phase Test Separator. 100 bbl x 50 to 150 psi Single Compartment Surge Tank. 100 bbl x 50 to 150 psi Dual Compartment Surge Tank. Diverter Manifold. Transfer pump.
EMERGENCY SHUT DOWN SYSTEMS:
- 5000 /10000 /15000 psi ESD Valve.
- Air controlled Hand Portable ESD Panel c/w set of Hi-Lo pilots & remote ESD stations.
INTERCONNECTING COMPONENTS:
- Piping components
- Data Headers
- Crossovers
Each skid mounted design comes with a wide range of integrated and interchangeable options that allow easy and cost-effective modifications to
match with variable field and process conditions or client standards.
- Specific requirements can be studied such as:
- Other flowrate capacities, different sizes.
- Low pressure rating for marginal fields (pumped wells).
- Insulation, heat tracing.
- Trailer mounting / unitisation to field conditions.
- Compact integration where footprint saving is critical.
- Various options and configurations.
FCE also provides Production equipment such as Separators 8, Vertical Degasser.
