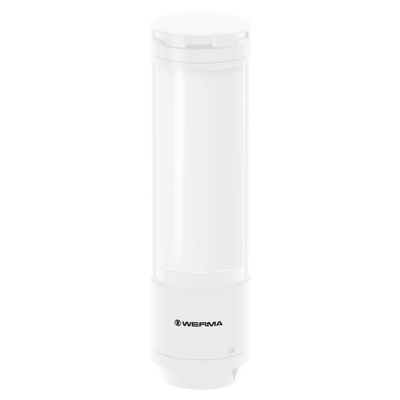

WERMA - Model eSIGN 9 Segments with Siren WH -Electronically Modular Signal Tower
An electronically modular signal tower that sets new standards in terms of visibility, individuality and efficiency. Fulfills Air Cleanliness Class 2 for Cleanroom applications in accordance with DIN EN ISO 14644-1. Full-surface signalling with clear and unmistakeable light effects for maximum visibility. Versatile customisation options with different modes and light effects. UL Type 4X ensures resistance to UV radiation and environmental influences. Classic signal tower indication in individual tiers. Autoscale mode for full-surface signalling and optimum visibility. Variable filling level indication from 0 to 100 %. Individual triggering to suit your requirements.
Part No.: 657.300.55
Series: eSIGN
Diameter in mm: 72 mm
Voltage: 24V DC
Signal effect: Blink Double flash Flash Permanent
Light colour: MC >1.000.000 colours
Sound output: 105
Protection rating: IP66 IP69K
Fixing: Base mounting Tube mounting
MTTF-value [years]: 39
Mechanical data
Height: 271 mm
Diameter: 72 mm
Materials: PC
Dome colour: Tranclucent
Housing colour: White
Protection category: IP66
IP69K
Connection: M12 plug 8-pole
Type of fixing: Base mounting
Tube mounting
Working temperature minimum: -30°C
Working temperature maximum: +60°C
Weight with packaging: 622 g
Product weight: 575 g
IK-Code (IEC 62262): IK08
Electrical data
Operating voltage: 24V
Operating voltage type: DC
Operating voltage tolerance: +/- 10%
Rated operational voltage: 24 VDC
Rated operational current: 405 mA
Rated inrush current: 800 mA
Protection class: Protection class 3
Pollution degree: 3
Overvoltage category: I
Isolation voltage: Ui = 50V / Uimp = 330V
Request to external PSU: SELV/PELV
connectivity: Digital entrance, USB
Optical data
Light source: LED
Light colour: MC >1.000.000 colours
Optical signal image: Blink, Double flash, Flash, Permanent
Blink frequency: Configurable
Service life optical: 50,000 h maximum
Acoustic data
Volume (max) at 1m distance: 105 dB
Acoustic signal image: Multi-tone
Number of tones: 10 tone
Acoustic service life: 5,000 h minimum
Approval data
Conforms with CE: Yes
Conforms with RoHS directive: Yes
WEEE: Yes
Conforms with ATEX-directive: No
Conforms with CCC-Ex: No
Conforms with CCC: No
Conforms with UL: cULus
UL Type Rating: Type 4/4X/12/13
Conforms with FCC: No
Conforms with IC: No
EAC certificate available: No
Conforms with UKCA (Importer): Yes (WERMA (UK) Ltd.)
Conforms with CMIM: No
Conforms with AS-I: No
Conforms with DNV: No
Conforms with RoHS CN: No
Conforms with VdS: No
MTTF-value [years]: 39
