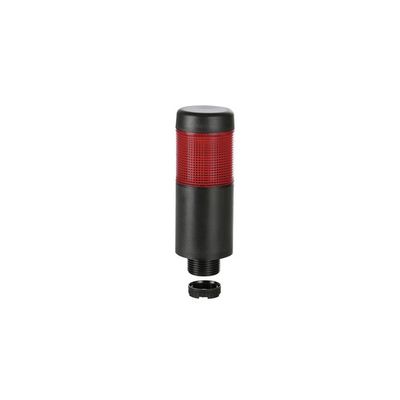

WERMA - Model K37 -Ready-Configured Signal Tower

Part No.: 699.610.75

Series: Kompakt 37

Diameter in mm: 38 mm

Voltage: 24V AC/DC

Signal effect: Permanent

Light colour: Red

Sound output: 85

Protection rating: IP65

Fixing: Built-in mounting

Mechanical data

Height: 107 mm

Diameter: 38 mm

Materials: PC

Dome colour: Red

Housing colour: Black

Protection category: IP65

Connection: M12 plug 5-pole

Cable entry: Membrane grommet

Cable entry minimum: d = 1 mm

Cable entry maximum: d = 9 mm

Cable length: 150 mm

Tension relief: Pull-out protection

Type of fixing: Built-in mounting

Working temperature minimum: -20°C

Working temperature maximum: +50°C

Weight with packaging: 100 g

Product weight: 60 g

Electrical data

Operating voltage: 24V

Operating voltage type: AC/DC

Operating voltage frequency: 50Hz

Operating voltage tolerance: +/- 10%

Rated operational voltage: 24 VDC

Rated operational current: 55 mA

Rated inrush current: 500 mA

Protection class: Protection class 2

Pollution degree: 3

In the connection area: 2

Optical data

Light source: LED

Light colour: Red

Optical signal image: Permanent

Service life optical: 50,000 h maximum

Acoustic data

Volume (max) at 1m distance: 85,0 dB (A)

Acoustic signal image: Pulse tone

Audio frequency: 3000 Hz

Acoustic service life: 5,000 h minimum

Approval data

Conforms with CE: Yes

Conforms with RoHS directive: Yes

WEEE: Yes

Conforms with ATEX-directive: No

Conforms with CCC: No

Conforms with UL: cULus

UL Type Rating: Type 12

Type 4X

Conforms with FCC: No

Conforms with IC: No

EAC certificate available: Yes

Conforms with UKCA (Importer): Yes (WERMA (UK) Ltd.)

Conforms with AS-I: No

ICAO Certification: No

Conforms with DNV: No

Conforms with RoHS CN: No

Conforms with VdS: No
