WESS - Model ENV200-C -Clamp-On Ultrasonic Sludge Density Meter
ENV200-C clamp-on density measurement guarantees fit-and-forget and reliable measurement with every kind of measuring medium. Different from other density meters, its measurement isn`t affected by pressure, corrosiveness, nor abrasiveness. As the clamp-on sensor can be mounted outside of pipe line even under flow-running condition, the user neither need to stop their process nor to consider the corrosiveness of liquid.
ENV200-C clamp-on density measurement guarantees fit-and-forget and reliable measurement with every kind of measuring medium. Different from other density meters, its measurement isn`t affected by pressure, corrosiveness, nor abrasiveness. As the clamp-on sensor can be mounted outside of pipe line even under flow-running condition, the user neither need to stop their process nor to consider the corrosiveness of liquid.

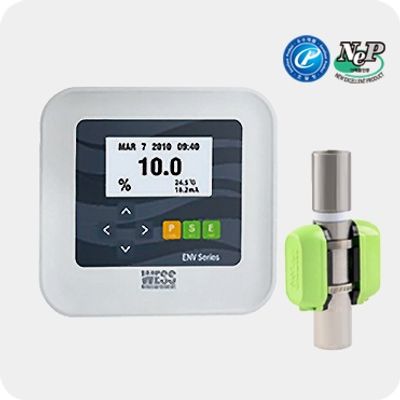

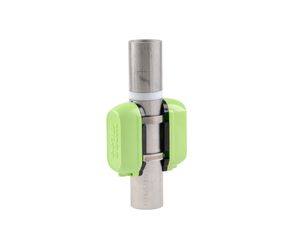

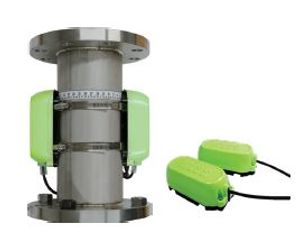

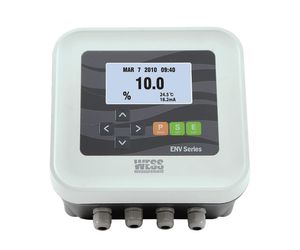

Clamp-On Ultrasonic Sludge Density Meter (ENV200-C)
The only CLAMP-ON installation
- No limit on measuring medium
- No cost for installation
- No maintenance for sensor cleaning
- No Space for installation
- Drives ultrasonic sensor and filters effective signal
- Converts envelop signal energy to density value
- Automatic gain control guarantees less maintenance
- Offers automatic frequency adjustment
- Patented measuring algorithm, EEAM
- Automatic gain control, AGC
- Automatic frequency adjustment, AFA

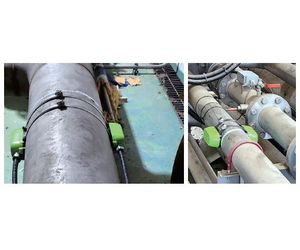

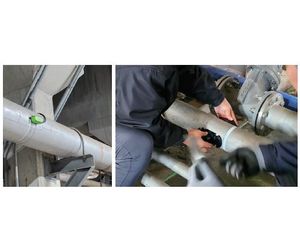

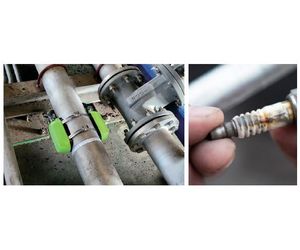

- Measure the density at outside of existing pipe line
- Applicable pipe materials
- Stainless steel, carbon steel
- PA, PVC, PVDF, etc
- Ingress protection pad protects water ingress at outdoor application
- IPP minimizes the impact on humidity, dust, vibration, etc. and extends the lifespan of sensor couplant.
No maintenance
- No sensor cleaning is required for sludge adhesion on sensor surface.
- No sensor replacement is required for wear and tear by flowing
- No additional pipe section is required for sensor cleaning and installation.
- No by-pass line is required for maintenance.
- No additional cost is required for sensor installation and reposition

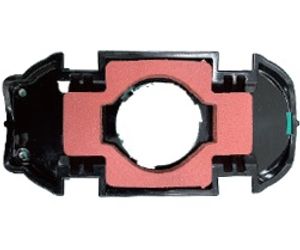

Clamp-on and small sized sensors enable narrow space and high positioned installation
- Able to measure any type of liquid and sludge regardless of adhesion, abrasion, and corrosion

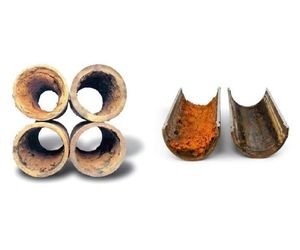

- Inner pipe scale is okay with one-time calibration
Conventional ultrasonic attenuation density meter just determines density by varying amplitude of received signals.

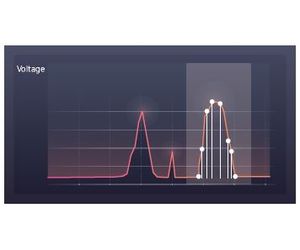

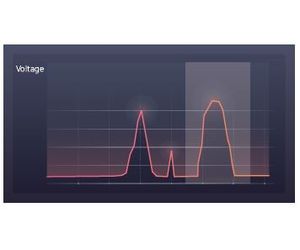

Unlike this, ENV200 is able to measure changes of concentration in a more sophisticated manner by adopting the patented EEAM (envelope energy averaging method), which measures not only the amplitude of received signals but also observes the shape of signal. It takes all energy as envelope and then convert it into density.

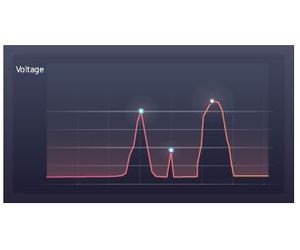

Adopts all reception signals which is higher than the set threshold amplitude and converts it to density value, peak-hold method. This measurement method can not avoid inaccurate measurement coming from electric noise or intermittent turbulence in the field.

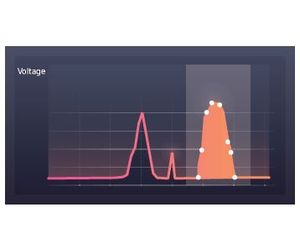

Step 1 : Choosing effective signal
Filter electric noise or abnormal signals and choose the effective signal
Integrates the envelope of selected signal
Convert the EEA value to the density unit

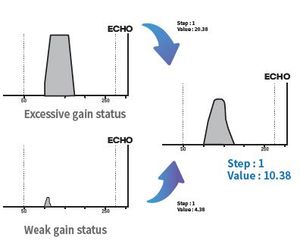

ENV200-C offers automatic gain control function to minimize field maintenance. It automatically increases or decreases sensor transmission strength to correspond field operational status.
Step (Gain control)
rather big gain control (step1 to 4)
Value (Minor gain control)
fine gain control

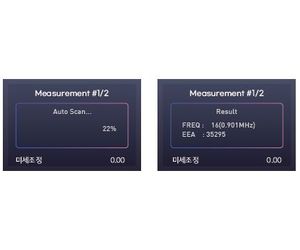

The optimal frequency varies on the field pipe material and thickness. ENV200-C automatically scans the right frequency among 47 operating frequencies.
- Measuring Range
- 0-500,000mg/l (0~50%)
- 1,000~2,000kg/m3 (1.000~2.000g/cm3)
- Resolution
- 0.1% or 0.01% (Selectable)
- 1kg/m3, 0.001 g/cm3
- Frequency [kHz]
- 699~2,041 (47 steps)
- Measuring Unit
- %, ppm, g/l, mg/l kg/m3, g/cm3
- Accuracy
- ±1.5% of F.S. or 1,500ppm, whichever is greater

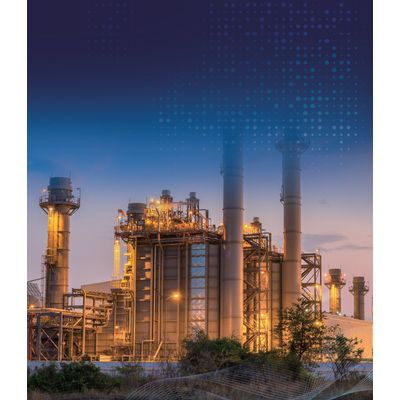

Thermal power plant

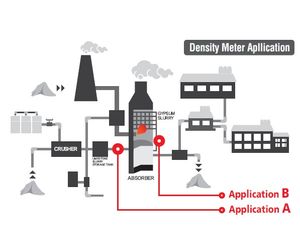

The limestone and gypsum slurry density meter can be applied at desulfurization process. The density meter of Application A is installed to control the density pumping from a mill slurry tank. The density meter of Application B is installed to monitor the density of gypsum slurry circulation at desulfurization process.
ENV200-C is applied next to a discharge pump of mineral pulp concentration process to monitor the density concentration. As this product is designed to resist contamination and build-up, it secures durability and reliability for long period.

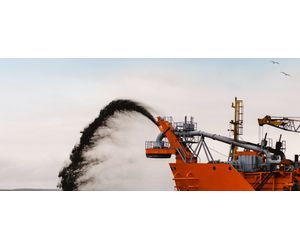

The clamp-on density meter is applied to monitor sludge density coming from bottom of ocean. As this product is mounted on the outer wall of the pipeline, it offers superior and stable measurements even in harsh environmental conditions.
Density meter has applied to many industrial plants such as semi-conductor, steel, refinery, foundry, petrochemical, etc.

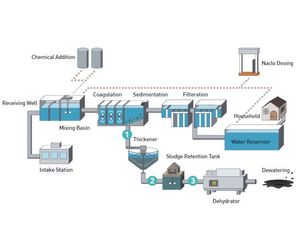

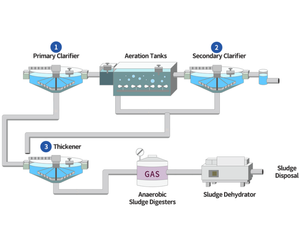

Density application lines
- Raw sludge line
- Return activated sludge line
- Surplus sludge line
- Thickened sludge line
- Dehydrated sludge line

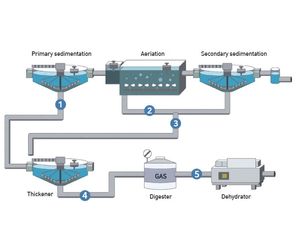

Density application lines
- Settled sludge
- Thickened sludge
- Dehydrated sludge
1. Primary sludge (ps)
2. Return activated sludge (ras)
3. Waste activated sludge (was)
4. Thickened sludge
5. Dehydrated sludge
1. Limestone slurry
2. Gypsum slurry
