Western Excelsior - Model Excel PP5-12 -Turf Reinforcement Mat (TRM)

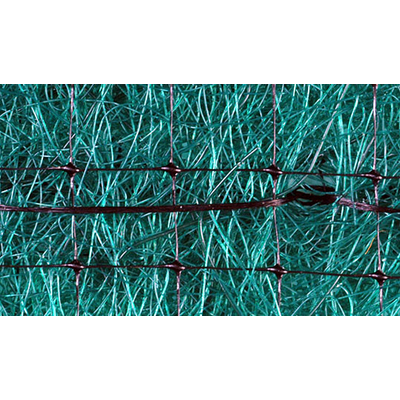

Western Excelsior`s Excel PP5-12 Turf Reinforcement Mat (TRM) consists of a matrix of ultraviolet stabilized, synthetic fibers stitched between two ultraviolet stabilized, heavy-duty synthetic nets. With a target weight of twelve ounces per square yard, the Excel PP5-12 provides sufficient thickness and durability to yield functional longevity greater than three years. The Excel PP5-12 is intended to provide immediate erosion control and long term turf reinforcement for the more severe slope and channelized applications.
The Excel PP5-12 TRM provides erosion control and turf reinforcement for a minimum of thirty-six months, and likely much longer. Available in a variety of roll sizes, Excel PP5-12 provides reliable, economical erosion control and turf reinforcement for projects that benefit from a permanent material. Excel PP5-12 utilizes a blend of properties specifically designed to provide a high level of unvegetated performance, in addition to excellent vegetated performance. Like all Western Excelsior products, Excel PP5-12 is made in the USA and may yield LEED credits for the end user. In addition to a complete suite of standard documentation, detailed information on the advantages and properties of the product are provided below.
- Property: Excel PPS-12
- Matrix Color: Green
- Netting: Top and Bottom
- Netting Type: Synthetic
- Netting Degradability: Non-Degradable
- Stitching: Synthetic
- Stitch Spacing: 2 in On Center
- Matrix: 100% Synthetic Fiber
- Degradability: Non-Degradable
- Degradability Mechanism: Non-Degradable
- Unit Weight: 12.0 oz/ydA2 (400 g/mA2)
- Thickness: 0.40 in {10 mm)
- Tensile Strength (MD): 325 lb/ft (4.7 kN/m)
- Tensile Strength (TD): 225 lb/ft (3.3 kN/m)
- Coverage: 20% open
- Available Widths: 7.5-16.0 ft (2.3-4.9 m)
- Available Lengths: 112.5 - 450 ft (34.3 -137.2 m)
- Nominal Longevity: > 36 Months
- Enhancement: None
