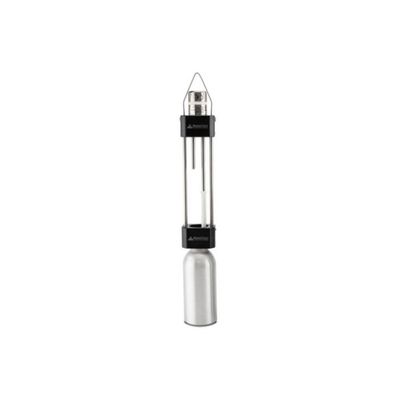

MadgeTech - Model LCS140 -Wet-Bulb/Dry-Bulb System
The LCS140 is a Wet-Bulb/Dry-Bulb system for monitoring high temperature humidity levels. Need to record humidity at high temperatures? Look no further than the LCS140 Wet-Bulb/Dry-Bulb system. Ditch the complexity of calculating with a psychrometer, the LCS140 coupled with the MadgeTech 4 Software does all the work for you! Capable of withstanding temperatures from -40 °C to +140 °C (-40 °F to +284 °F), the dual probe LCS140 takes wet-bulb and dry-bulb readings simultaneously to determine the amount of humidity present.
The LCS140 Includes:
(1) LCS140 Dual Probe Data Logger
(1) Aluminum Reservoir Bottle (recommended to use distilled water only)
(6) Wet-Bulb Socks
(1) Hanging Fixture
The LCS140 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
*Note: Only distilled water is recommended for use in the reservoir bottle.
General
- Memory: 32,767 readings
- Reading Rate: 1 reading every second up to 1 reading every 24 hours
- Battery Life: 1 year typical (1 minute reading rate at 25 °C/77 °F)
- Material: 316 Stainless Steel / Radel
- IP Rating: IP68
- Operating Environment: -40 °C to +140 °C (-40 °F to +284 °F)
- 0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA
- Approvals: CE
Temperature
- Temperature Sensor: Rigid RTD Probe
- Temperature Range: -40 °C to +140 °C (-40 °F to +284 °F)
- Temperature Resolution: 0.01 °C (0.02 °F)
- Calibrated Accuracy: ±0.1 °C (±0.18 °F)
