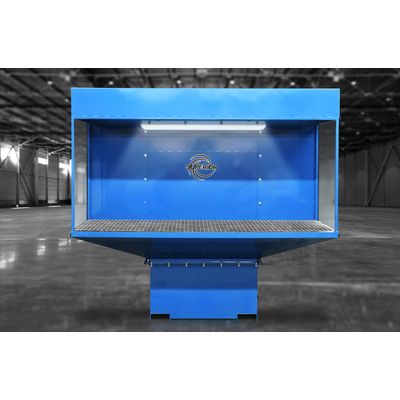

Superior - Model WDC8000 -Wet Downdraft Tables

SHARE

Superior Air is leading the industry in combustible dust removal with our new SWC(Superior Wet Collector) series. Superior’s highly engineered units safely collect ferrous and non-ferrous metals with push/pull high velocity suction with downdraft velocities averaging in excess of over 350 feet per minute, while exceeding OSHA standards. Our Wet Collectors are heavy duty with a sleek design. They are easy to maintain with easy access cleanout and no replacement filters. Our units are PLC driven to automatically regulate water levels based on pressure, so the unit is always performing at optimum levels without relying on the operator.

Most popular related searches
wet downdraft table
downdraft table
combustible dust
non-ferrous metal
dust control
epoxy coating
downdraft booth
fire prevention safety
explosion hazard
pressure regulator

Exclusive to Superior Air
Our base unit can be equipped with any of the following attachments and allows for easy swap out as your needs change. We are the only table on the market with this feature. Customize your work space with the perfect size wet downdraft table.

FOOTPRINT: 66″ D x 72″ W x 96″ T
HP/CFM RATING: 10 HP direct drive TEFC Motor/Blower rated at 8000 CFM
VOLTAGE/AMP DRAW: 3 Phase Power–460V, 14 Full Load Amps, 230 V 28 Full Load Amps
CONTROLS: PLC Controls with NEMA 12 Enclosure outside airstream.  Prewired with start/stop, overload relays and can be interlocked to dust producing equipment.  Includes 24V automated ball valve water fill and static pressure regulated water controls.
ALARMS: Visual high and low water alarms with automatic shutdown features.
WEIGHT: 1200 Lbs
CONTROLS: On/off Switch prewired
WATER CAPACITY: 120 gallons
EXHAUST: Top Exhaust and/or regulated Regain air.
CABINET/FINISH: 7/10/12 G Stainless steel finished w/Superior blue epoxy coat inside & out

EVERYTHING STANDARD

Unlike competitor products, Superior Wet Collectors come standard with:

  • Stainless steel construction in wet areas
  • Automatic PLC Controlled to ensure proper operation parameters per NFPA Requirements
  • Even velocities across the table surface eliminates dead zones
  • LED Lighting, Lexan sides, Scratch Free Fiberglass Grating
  • OSHA Combustible Dust and NFPA68/69/454/652 Compliant out of the box.
MODULAR TABLE DESIGN

Exclusive to Superior Air
Our base unit can be equipped with any of the following attachments and allows for easy swap out as your needs change. We are the only table on the market with this feature.

Standard Attachment options:
3’x5’ Table Top (533 feet per minute downdraft)
3’x6 Table Top (444 feet per minute downdraft)
3’x8’ Table Top (333 feet per minute downdraft)
4’x4’ Table Top (500 feet per minute downdraft)
4’x6’ Table Top (333 feet per minute downdraft)
4’x8’ Table Top (250 feet per minute downdraft)
Booth Module Backdraft (8000 CFM)
Ducted Module (up to 8000 CFM)

Combustible Dust Removal Wet Collection Downdraft Solutions
Combustible dust is a very serious explosion hazard. Comply with National Fire Prevention Association (NFPA) and OSHA combustible dust national emphasis programs by safely neutralizing and removing dangerous materials.

  • Welding
  • Grinding
  • Polishing
  • Buffing
  • Cutting
