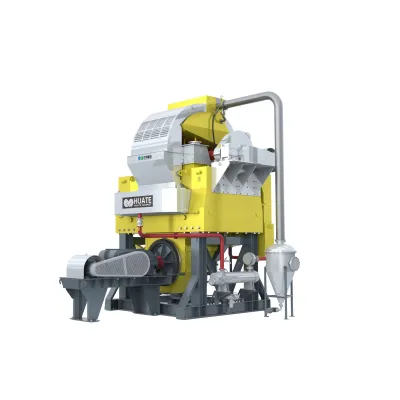

Huate - Wet Vertical Ring High Gradient Electromagnetic Separator for Metallic Mineral Separation
The Wet Vertical Ring High Gradient Electromagnetic Separator is an advanced system designed to improve the processing of weakly magnetic metallic ores such as hematite, limonite, and manganese ore. Operating with a magnetic intensity ranging from 0.4T to 1.8T, this separator is highly suited for the wet concentration of these minerals, and it is engineered to perform reliably even in harsh environments. The separator features a cutting-edge oil-water compound cooling system, wherein the internal coil is fully sealed and oil-cooled, achieving stable mineral processing with minimal heat dissipation. Its advanced design includes armored coil ends to recycle divergent magnetic fields, enhancing magnetic energy utilization by approximately 8%, while the background magnetic field can reach above 1.4T. With structural resilience that is rain-proof, dust-proof, and corrosion-resistant, and a design that fosters energy conservation by utilizing a clean process for cooling the transformer oil, this separator balances efficiency and environmental considerations. An intelligent operation and control are implemented through an advanced fault diagnosis and remote control system, optimizing the processing of different materials via a gas-water composite ore washing device, which significantly enhances ore flushing efficiency.Most popular related searches
high gradient magnetic separator
electromagnetic separation
cooling system
mineral processing
water heating
water resource
cooling water
water cooling
rare earth
iron removal
Suitable for wet concentration of weakly magnetic metallic ores (e.g., hematite, limonite, specularite, manganese ore, ilmenite, chrome ore, rare earth ore) and for iron removal and purification of non-metallic minerals (e.g., quartz, feldspar, kaolin) in various harsh working environments.
- The Oil-Water Compound Cooling Vertical Ring High Gradient Magnetic Separator has an advanced cooling system and the coil is a fully sealed forced oil-cooled external circulation.The coil adopts large-flow external circulation oil-water heat exchange for heat dissipation. The coil temperature rise is less than 25°C, the magnetic field heat attenuation is small, and the mineral processing index is stable.
- The two ends of the coil are armored to recycle the divergent magnetic field. The utilization rate of magnetic energy is increased by about 8%, and the background magnetic field reaches above 1.4T.
- The coil adopts a fully sealed structure, which is rain-proof, dust-proof and corrosion-resistant, which can adapt to various harsh working environments.
- A clean process can be used to cool transformer oil without the need for additional cooling water, which is energy-saving, environmentally friendly, and saves water resources.
- The magnetic medium adopts a rod medium structure with different cross sections, and the magnetic field gradient is large and the magnetic field strength is high.
- With advanced fault diagnosis system and remote control system, it realizes the intelligent operation and control of the equipment.
- According to the characteristics of different materials,the gas-water composite ore washing and pulsation device can be selected.High ore flushing efficiency, good sorting effect, and save water resource.
