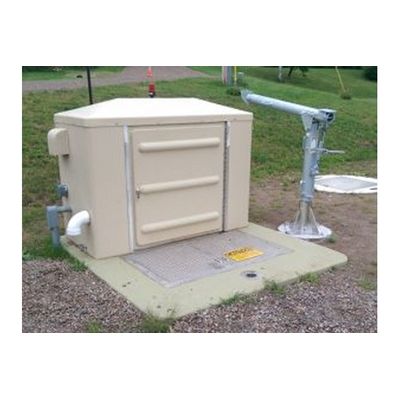

USEMCO PumpMate - Wet Well Mounted Above-Ground Valve and Control Station
The PumpMate is a wet well, mounted, above-ground valve and control station for submersible pumps. The base is 8 inches of concrete and rebar with a double door hatch and hoist receptacle. Two large doors for easy access to the control panel and valving.
Most popular related searches
wet well
flanged check valve
valve vault
control valve
jib crane
plug valve
check valve
submersible pump
wet well pump
pipeline integrity control
- Eliminates concrete valve vault
- Eliminates access door for valve vault
- Eliminates external panel mounting
- Eliminates wiring control panel to wet well
- Completely assembled with sole source warranty
- Cast reinforced concrete base
- Optional laminated fiberglass exterior for base.
- Fiberglass encapsulated foam insulated equipment enclosure (R 7.5).
- Two insulated oversize hinged doors for access to piping and controls.
- Integral aluminum hatch for access to wet well and pump removal.
- JIB crane socket provided to facilitate pump removal.
- Fits wet well sizes 4′ through 8′ [pad required for larger diameters].
- Available in 2″, 3″, 4″ or 6″ piping assemblies.
- Full bodied flanged check valves and lever operated plug valves.
- Optional emergency bypass pump piping available.
- “SENTRY” controller with submersible transducer and back up floats option.
- NEMA 1 stainless steel U.L. 508 control panel standard up to 25 horsepower.
- Thermostatically controlled wall heater and ventilation fan.
- Custom options available upon request.
- Station weight, approx. weight 6500 Lbs.
- All Components Above Ground
- Quick Delivery
- Single Source Responsibility
- Low Cost
