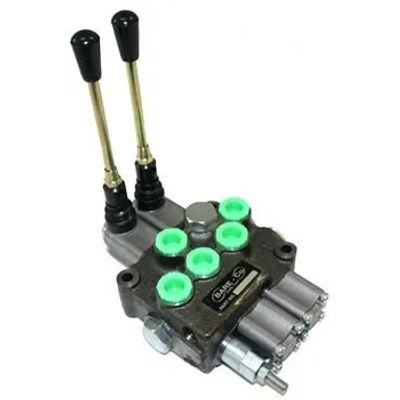

WFM - Double Spool: One Double Acting – One Single Acting

SIN/DBL ACT 2SPOOL VLV 45L/12G PER MIN. Open Centre. Adaptable to Closed Centre. 2 US Gal/min–45 Litres/min. Fully adjustable relief valves pre-set at 2000 P.S.I.. Dual location (side & top) Supply & Return ports. Blanking plugs supplied for alternate Supply/Return ports. All ports standard 3/4″ UN “O” Ring. Vertical or horizontal handle mounting. For Closed Centre applications order B8476 Power Beyond – Closed Centre Kit & adjust the relief valve in the Control Valve so that it is above pump pressure. See TECHNICAL INFO for explanation of Closed/Open Centre & Power Beyond terms. NOTE: Parts shown are BARE-Co parts – original part numbers are shown for reference only.
