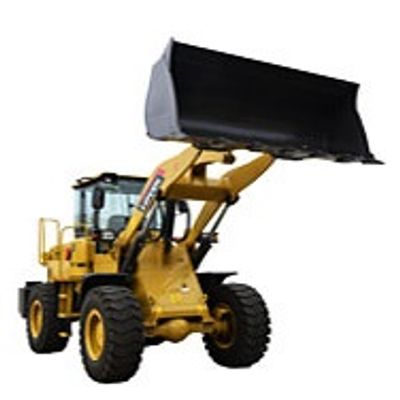

Lovol - Model FL966H -Wheel Loader

1. ROPS/FOPS certified cab for operator safety and reliable operation in tough conditions.
2. Higher productivity and lower overall operating costs.
3. High-efficiency linkage mechanism, strong lifting power, fast movement, strong lifting ability.
4. Optional multiple attachments include: multiple buckets, wood grabber, marble fork.

Main paramater

• Operating mass(kg）, 20600
• Bucket capacity, 4
• Rated load(kg）, 6500
• Traction(kN）, 175
• Digging force(kN）, 185
• Gradeability, 29
• Unloading height(mm）, 3150
• Unloading distance(mm）, 1310
• Min. ground diatance（mm）, 445
• Wheel tread（mm）, 2250
• Wheelbase（mm）, 3400
• Bucket outer turning radius（mm）, 7130
• Outline distance(mm), 8530*3050*3400

Engine

• Model, Weichai WD10G240E21
• Max. torque(N·m）, 980
• Rated power(kW）, 178
• Rated rotational speed(rpm）, 2200

Running system

• Gearbox shift, Front:4 gears Rear:3 gears
• Max. speed, 38.0
• Type, 23.5-25
• Ply rating, 20
• Steering angle, 38

Other

• Operating model, Pilot control
• Sum of three items(s), 11.0
• Fuel tank(L), 350
• Hydraulic oil tank(L), 151
