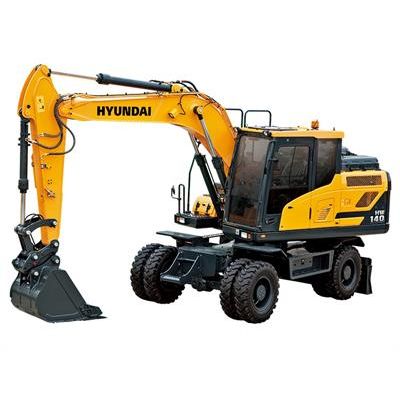

Hyundai Construction - Model HW140 -Wheeled Excavators
The Hyundai wheeled excavator product line includes three HW series models and one 9A series compact model to give you an edge in a wide range of on-road and off-road applications. These Tier 4-Final-compliant wheeled excavators deliver improved performance, increased fuel efficiency, superior travel speeds on the road, an enhanced cab and added safety features.
Most popular related searches
wheeled excavator trailer
hydrostatic drive
flow control
air filter
safety product
air filtration
product safety
Performance
- Hydrostatic drive
- Attachment Flow Control
- Dozer blade
- Front outrigger
Convenience
- Intelligent 8" touchscreen monitor
- Advanced audio system
- Auto climate control (AC/Heat)
- Deluxe Operator`s Seat
Serviceability
- Centralized Lubrication
- Cab Air Filter Access
- Hi-Mate - Telematics System
- Battery disconnect switch
- Auto-diagnostic system
- ENGINE MODEL: Cummins QSB6.7
- NET POWER: 149 hp (111 kW) at 2,150 rpm
- OPERATING WEIGHT: 13,880 kg (30,600 lbs)
- BUCKET RANGE: 0.23 m3 (0.30 yd3) - 0.71 m3 (0.93 yd3)
- SWING SPEED: 11.6 rpm
- TRAVEL SPEED (MPH): 39 km/h (24.2 mph)
- MAX. DIGGING DEPTH (FT/IN): 4,850 mm (15 ft 11 in)
- MAX. DIGGING REACH: 7,920 mm (26 ft 0 in)
- TAIL SWING RADIUS (FT/IN): 2,670 mm (8 ft 10 in)
- BUCKET BREAKOUT FORCE: 11,290 kgf (24,890 lbf)
- ARM CROWD FORCE: 8,580 kgf (18,910 lbf)
