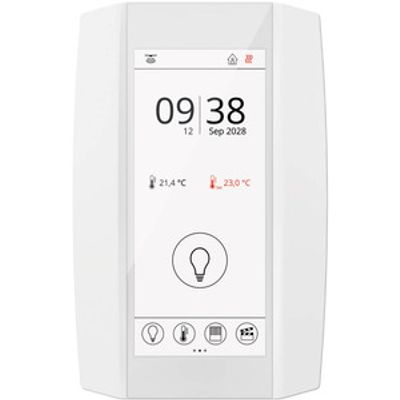

NOVOS Touch - White temp RS485 BACnet (MS/TP) Casambi

SHARE

Room operating unit temperature | Casambi (BLE), RS485 BACnet. Room Climate Control, Lighting control, Scene control, Shading control, Measure values.

Most popular related searches
digital temperature controller
temperature monitoring
light monitor
  • Application/type : Room operating unit
  • Purpose : Room Climate Control, Lighting control, Scene control, Shading control, Measure values
  • Measured values : temperature
  • Interface : Casambi (BLE), RS485 BACnet
  • Functions : temperature control, fan control, change-over, window/door monitoring, presence, lighting, blinds/shutter
  • Operating functions : setpoint adjustment temperature, fan stage adjustment, presence detection, light ON/OFF/DIM, blind UP/DOWN/SET, setup scenarios, ECO function, showing measured value and history
  • Operating elements : touch screen
  • Configuration : NOVOSapp, App, uConfig, BUS
  • Input : 1x input for floating contact
  • Network technology : RS485 BACnet (MS/TP)
  • Radio technology : 2,4 GHz, Casambi (BLE)
  • Operating range temperature (°C) : 0..+50
  • Operating ranges temperature (°C) : 0..+50
  • Output signal temperature : 0..+50 °C (default setting), selectable from 4 temperature ranges -40..+60 | 0..+50 | -20..+80 | -15..+35 °C -50..+50 | 0..+50 | -20..+80 | -15..+35 °C, optionally configurable
  • Operating range humidity : max. 85% rH non-condensing
  • Accuracy temperature : ±0,5 K (typ. at 21 °C), within default measuring range
  • Power supply : 24 V = (±10%) SELV, 24 V ~ (±10%) SELV
  • Power consumption : typ. 2,5 W (24 V =), 5 VA (24 V ~)
  • Display : TFT 4,8", 1120x480 px, capacitive touch technology
  • Enclosure : with thermal separation and sensor channel, PC V0
  • Colour : pure white
  • Protection (IP) : IP30, according to EN 60529
  • Connection : tool-free mountable spring clamp, max. 1,5 mm², cable entry via rear opening, predetermined breaking point (bottom) or drilling mark (top)
  • Mounting : flush-mounted on standard EU box (Ø=60 mm), flush-mounted in standard EU box (Ø=60 mm, depth min. 45 mm), surface-mounted flat on base using adhesive foil or screws, base part can be mounted and wired separately
  • Packaging length (mm) : 170
  • Packaging width (mm) : 110
  • Packaging height (mm) : 45
  • Packaging : case packaging
  • Device length (mm) : 163
  • Device width (mm) : 106
  • Device height (mm) : 25
