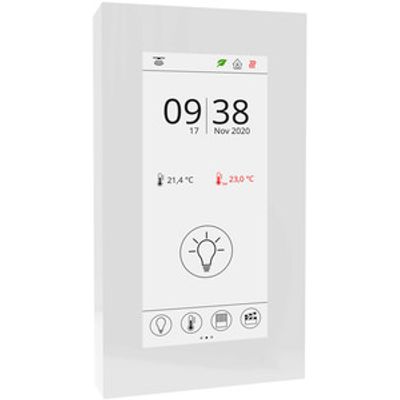

Thermokon - Model Thanos EVO -White Temp RS485 Modbus Casambi
Room operating unit temperature | Casambi (BLE), RS485 Modbus Room Climate Control, Lighting control, Scene control, Shading control, Measure values.
Most popular related searches
- Application/type : Room operating unit
- Purpose : Room Climate Control, Lighting control, Scene control, Shading control, Measure values
- Measured values : temperature
- Interface : Casambi (BLE), RS485 Modbus
- Functions : temperature control, fan control, change-over, window/door monitoring, presence, lighting, blinds/shutter
- Operating functions : setpoint adjustment temperature, fan stage adjustment, presence detection, light ON/OFF/DIM, blind UP/DOWN/SET, setup scenarios, ECO function, showing measured value and history, Colour temperature, RGBW colour control
- Operating elements : touch screen
- Configuration : NOVOSapp, uConfig, BUS
- Input : 1x input for floating contact
- Network technology : RS485 Modbus
- Radio technology : 2,4 GHz, Casambi (BLE)
- Data transmission : RTU, half-duplex, baud rate 9.600, 19.200, 38.400 or 57.600, parity: none (2 stop bits), even or odd (1 stop bit)
- Operating range temperature (°C) : 0..+50
- Operating ranges temperature (°C) : 0..+50
- Output signal temperature : 0..+50 °C (default setting), selectable from 4 temperature ranges -40..+60 | 0..+50 | -20..+80 | -15..+35 °C -50..+50 | 0..+50 | -20..+80 | -15..+35 °C, optionally configurable
- Operating range humidity : max. 85% rH non-condensing
- Accuracy temperature : ±0,5 K (typ. at 21 °C), within default measuring range
- Power supply : 24 V = (±10%) SELV, 24 V ~ (±10%) SELV
- Power consumption : typ. 2,5 W (24 V =), 5 VA (24 V ~)
- Display : TFT 4,8", 1120x480 px, capacitive touch technology
- Enclosure : with thermal separation and sensor channel, PC V0
- Colour : pure white
- Protection (IP) : IP30, according to EN 60529
- Connection : tool-free mountable spring clamp, max. 1,5 mm², cable entry via rear opening, predetermined breaking point (bottom) or drilling mark (top)
- Mounting : flush-mounted on standard EU box (Ø=60 mm), flush-mounted in standard EU box (Ø=60 mm, depth min. 45 mm), surface-mounted flat on base using adhesive foil or screws, base part can be mounted and wired separately
- Packaging length (mm) : 170
- Packaging width (mm) : 110
- Packaging height (mm) : 45
- Packaging : case packaging
- Device length (mm) : 146
- Device width (mm) : 90
- Device height (mm) : 20
