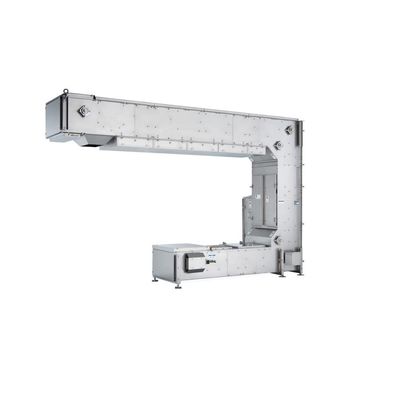

Frazier & Son - Model C -Whiz Lifter
FromFrazier & Son
The Model C Whiz Lifter by Frazier & Son is designed for efficient conveyor operations, facilitating the handling of various products with precision. Its bucket size and conveyor capacities are optimized for uniform feed at 45 FPM. However, production rates may vary based on product consistency and loading patterns. Uneven loading and non-free-flowing materials can impact throughput. Proper bucket sizing is only assured upon receipt of sample products and detailed feed system information. Users are encouraged to consult with the factory for accurate bucket size determination to ensure optimal performance. The company disclaims responsibility for improper size selections by third parties.
Most popular related searches
bucket elevator
bucket conveyor
laser cutting technology
worm gear reducer
vibratory feeder
chain conveyor
conveyor cover
storage safety
safety storage
- Bucket conveyor frames constructed with 12 gauge Type 304 stainless steel with a 2B mill finish
- All framework and components mounted on stand offs and spacers
- Product contact points, other than buckets, are all stainless steel
- Welds in product contact zones are ground smooth
- Stainless steel shafts
- Carbon steel sprockets
- Premium carbon steel conveyor chain
- Continuous, splatter free TIG welds throughout
- Right angle gear box provides reliable power transmission. Drive system designed for minimum of 1.5 service factor & smooth interior surfaces
- Stainless steel take up units with spring loading for simple, accurate chain tensioning
- Long lasting, self-lubricating, sanitary UHMW chain guides captivate the chain to provide excellent stability and wear resistance
- Stainless steel non‐adjustable cams and guides for maintenance free bucket tracking
- Spring loaded chain take-ups for fast and easy conveyor chain tensioning.
- Totally enclosed bucket conveyor
Washdown Applications
- Variety of Washdown options available to meet customer specific requirements
- Washdown Duty Motors and Gear Reducers
- Stainless steel chain, bearings, and sprockets
- Water-shedding roof and Washdown Tracking
- NEMA 4X Electrical Enclosures and Stainless Steel Conduit
Motor Options
- Fractional horse power motors for energy efficiency
- Motor construction options
- TEFC
- TENV
- Washdown Duty
- Explosion Proof
Power Options
- To suit customer’s power requirements
- 115V/60Hz
- 230V/60 Hz
- 380V/50 Hz
- 480V/50 Hz
- 575V/60Hz
Quality Fabricated Bucket Elevators
- Totally enclosed 304 stainless steel bucket elevator frames, doors, and covers
- Precise fabrication using state-of-the-art laser cutting technology
- Stainless steel hardware and aircraft lock nuts, no split washers
Versatility- Many Bucket Elevator Configurations Available
- Feed multiple inline packaging machines with a single bucket conveyor
- Feed multiple infeed points into a single packaging machine
- Indexing drives available for kit or food product assemblies
- Used in process or packaging applications
Gentle Elevating and Conveying
- Ideal for finished products prior to packaging
- Minimal product degradation
- Interlocking bucket design at product fill area
- Transitions at infeed and discharge to ensure gentle, uniform feed
Innovative Bucket Elevator Designs
- Small footprint compared to many other conveying methods, saving valuable plant floor real estate
- Each Bucket Elevator is custom designed and built to meet specific project requirements
- Custom controls to integrate a variety of equipment
- Transition chutes, vibratory feeders, and storage hoppers
Safety & Sanitary Washdown Features and Options
Safety Features for Frazier & Son Bucket Conveyors:
- All covers and guarding require tools to open
- Captive, hinged stainless steel doors and hinged catch pans
- Saferty interlocking switches and two-hand jog stations are available
Frazier & Son offers a variety of Sanitary Washdown options for Bucket Conveyors, including:
- Washdown Duty Motors and Gear Reducers
- Stainless steel chain, bearings, and sprockets
- Water-shedding roof and washdown tracking
- NEMA 4X electrical enclosures and Stainless Steel Conduit
Ease of Maintenance & Bucket Material Options
Ease of Maintenance
- Stainless steel take-up units are spring loaded for simple, accurate chain tensioning
- Stainless steel non-adjustable cams and guides for maintenance free bucket tracking
Bucket Material Options:
- Wide variety of bucket materials available including polycarbonate, polypropylene, metal impregnated polypropylene, and stainless steel buckets.
- Dimpled and textured surfaces are available for sticky products.
