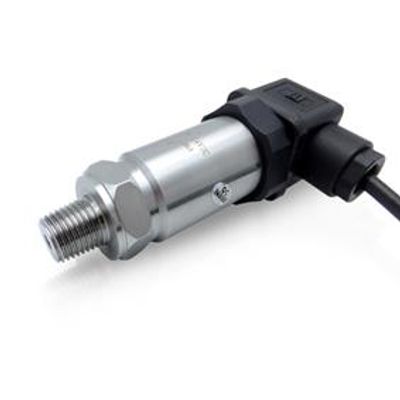

WHsensors - Model WH 131 Series -General Purpose Pressure Transducers
The WH131 series pressure transducer is designed to meet the operational requirements of demanding pressure measurement applications, where good quality, fast delivery and low cost are of the highest priority.
WH131 Pressure transducers are available for both Gauge Pressure and Absolute pressure applications.
Applications for the WH131 include the continuous monitoring of oil, gas, water and other liquids in theprocess, industrial, medical and aerospace industries.
Also ideal for the measurement and control of pressure in refrigeration, pneumatic, compressor , HVAC and engine monitoring systems..
- Pressure ranges 0-500mBar to 0-1500Bar
- Sealed to IP65 (IP66 & IP67 optional)
- 4-20mA Output as standard (1-5V, 0-5V OR 0-10V optional)
- Wide operating temperature range
- Outstanding performance and stability
- Available from stock
- CE Approved
- Intrinsically safe option
- Design Benefits
-
High Accuracy
-
High Strength Stainless Steel Construction
-
Excellent Media Compatibility
-
No Internal O-rings
-
Rugged Construction
-
Suitable for High Shock and Vibration
- Energy and Water Management
- Autoclave
- Pressure Instrumentation
- Data Loggers
- Barometric Correctors
- Refrigeration Equipment
- Presses
- Machine Tools
- Hydraulics
- Pneumatics
- Pump Control
