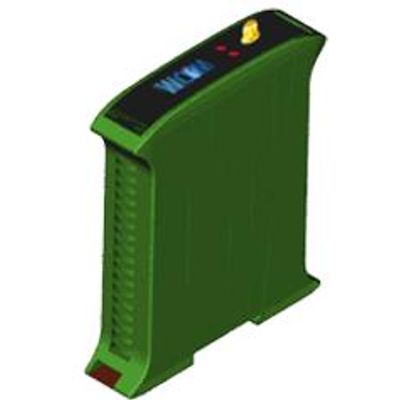

WiCOM - Model 4-2-20 -GSM Wireless Device
FromHastel Limited
The Hastel WiCOM-4-2-20 provides a reliable, long range wireless solution for relaying a 4 to 20mA signal and 2 digital states from a sensor to the measurement system. Replacing wires, conduit and trenching the battery operated WiCOM extends the reach of instrumentation, PLC, DCS and other systems.
Most popular related searches
- Radio
- 16 channels
- 2.405 GHz to 2.480 GHz
- 9.6V battery pack
- 5 years battery life (average transmission interval)
- The transmitter
- 9.6 volts battery
- 2 wire 4 to 20mA - polarity dependant.
- 16 bit resolution
- 1 volt free inputs
- Receiver
- 2 wire, isolated, polarity dependant
- 16 bit resolution
- 2 open collector outputs
- Transmission interval (factory set on user request)
- Battery operated transmitter
- 1 volt free inputs
- The transmitter communicates with all our radio enabled equipment
- Long range (up to 4 kilometers line of sight)
- Licence free operation on 2.4GHz (802.15.4 LR-WPAN) - see FAQ below
