Federal Signal MicroPulse - Wide Angle

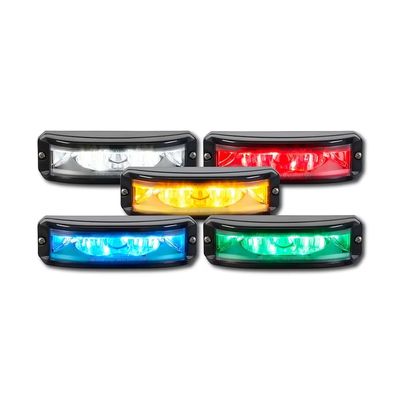

A Curved Shape and Powerful LEDs Provide an Impressive Off-Axis Light Spread. MicroPulse® Wide Angle 9’s curved design and powerful LEDs provide an impressive 180-degree light spread. These perimeter lights are ideal for mounting on push bumpers, rub rails, side mirrors, and spoilers of first responder and work truck vehicles. MicroPulse Wide Angle 9 models are available in Amber, Blue, Red, Green, and White and in single, or tri-color combinations. MicroPulse Wide Angle 9 tri-color models can operate as a single, dual, or tri-color light.
Highly Effective Warning Light
MicroPulse Wide Angle 9 lights can be programmed to operate as a single unit or synchronize with multiple light heads. Built-in flash patterns enable multiple vehicle perimeter lights to be either synchronized in the same pattern or in opposite sequence. The Red/Blue/White MicroPulse Wide Angle 9 tri-color model is also available with a smoked lens. The dark tinted polycarbonate lens makes this model the optimal choice for undercover applications.
Built to Last
The MicroPulse Wide Angle 9 Clear lens is made of UV-resistant polycarbonate to protect against harsh conditions. Models come standard with a Black bezel and are also available with an optional Chrome or White bezel.
FSJoin™ Compatible
MicroPulse Wide Angle 9 models are FSJoin™ compatible. FSJoin is a programming compatibility feature of Federal Signal’s light bars and exterior/ interior warning lights that work in conjunction with a Convergence Network siren or controller. When using FSJoin products, the Convergence Network siren/light controller controls all of the vehicle’s warning light flash patterns, dimming feature, and light head syncing/alternating patterns.
- 180-degree wide angle perimeter light
- Single- and tri-color models
- (12) single-color or (20) tri-color flash patterns
- Multi-voltage, 12/24 Vdc
- Wide range of external mounting applications
- Black bezel standard; Chrome or White bezel optional
- Five-year warranty
- Light Source: LED
- Warranty: Five-year
