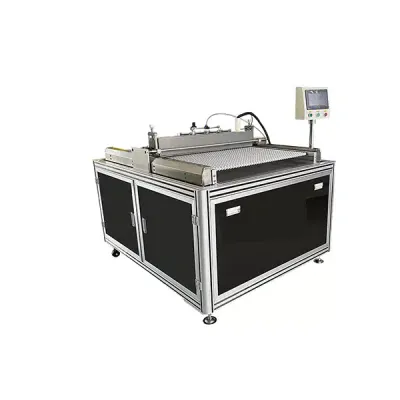

Fari Plasma - Model PM-G16D -Wide Plasma Treatment Machine

SHARE

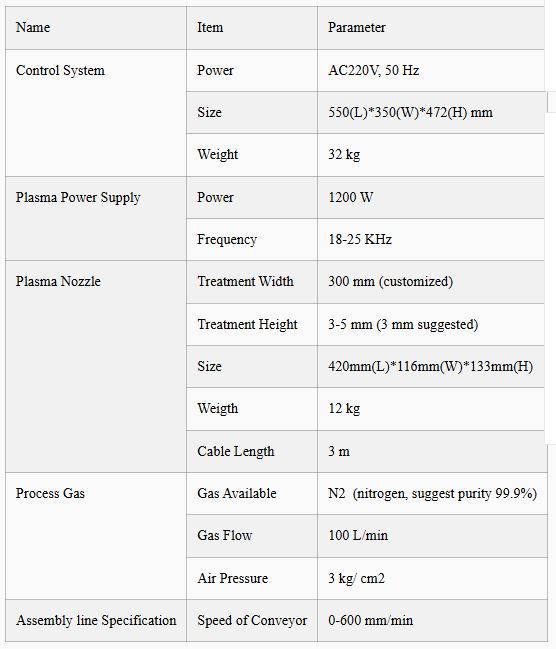

The PM-G16D Wide Plasma Treatment Machine is engineered for precision surface modifications, dealing with both metallic and plastic materials, and boasting a customizable processing width that extends up to 2000mm. Utilizing nitrogen gas as the process medium, it ensures a uniform treatment effect. Technically, the equipment operates on a power supply of AC220V at 50 Hz and is compact with dimensions of 550mm in length, 350mm in width, and 472mm in height. The plasma power supply delivers 1200W, operating at a frequency range of 18-25 KHz. The nozzle provides a treatment width of 300 mm, adjustable to suit specific needs, with a suggested treatment height of 3 mm. Process gas purity is recommended at 99.9%, flowing at a rate of 100 liters per minute under a substantial pressure of 3 kg/cm². The machine is suited for varied assembly line speeds, maintaining operational efficacy with conveyor speeds between 0 to 600 mm/min.
Most popular related searches
process gas
  1. The processing width can be customized, up to 2000mm
  2. Applicable to metal, plastic and other plates
  3. Using nitrogen, the processing effect is uniform
