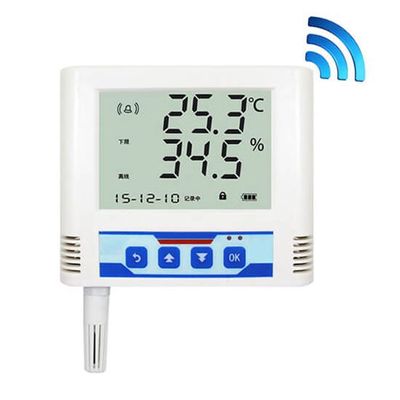

Renke - Model RS-WS-WIFI-6 -Wifi Temperature and Humidity Data Logger
RS-WS-WIFI-6 is an industrial-grade temperature and humidity recorder for WIFI wireless data transmission, which can collect temperature and humidity data and upload it to the server via WIFI. This wifi temperature and humidity data logger makes full use of the established WIFI communication network to realize data collection and transmission and achieve the purpose of centralized monitoring data.
- Model: RS-WS-WIFI-6
- MOQ: 1 PCS
- Delivery date: within 24 hours
- Price: $58.4~$99
RS-WS-WIFI-6 is an industrial-grade wireless temperature and humidity transmitter, which can collect temperature and humidity data and upload it to the server via WIFI. Make full use of the existing WIFI network to realize data collection and transmission, which can be monitored in multiple locations. Wiring-free installation.
The wifi temperature and humidity data logger adopts a large LCD, with dual control of temperature and humidity upper and lower limits, free setting of limit values, and functions such as temperature and humidity calibration by a password. The internal integrated alarm module (buzzer or relay) can realize high and low-temperature alarms. And high and low humidity alarms. RS-WS-WIFI-6 adopts the original high-quality temperature and humidity measurement unit imported from Switzerland, with high accuracy and strong anti-interference ability.
This wifi temperature and humidity data logger has two types, built-in probe and external probe, and can be equipped with a rechargeable battery. Support users to freely set various parameters such as alarm value, time, upper and lower limits of temperature and humidity. The wiring is simple and the measurement is accurate. It is the most popular temperature and humidity recorder.
Two built-in relays can be used for control (optional). After the relays are associated, the heating and cooling operations will be performed automatically when the temperature is abnormal.
- The probe can be installed externally, and the probe cable can be up to 30 meters long.
- Upload data via WIFI, support intra-LAN communication, cross-gateway WAN communication, and support secondary development.
- Support dynamic domain name resolution DNS.
- The data logger parameters are configured through 485, which is simple and convenient.
- Temperature and humidity acquisition frequency 2S/time, data upload frequency 1S~10000 S/time can be set.
- Built-in alarm function, can set the upper and lower limit of alarm and return difference value.
- It has 2 normally open contacts, which can be arbitrarily associated with alarm output (optional).
- Built-in a buzzer, an external sound, and a light alarm (optional).
- Free local monitoring software platform and environmental monitoring cloud platform can be accessed. (www.0531yun.cn)
- The data logger is suitable for DC10~30V wide voltage power supply.
