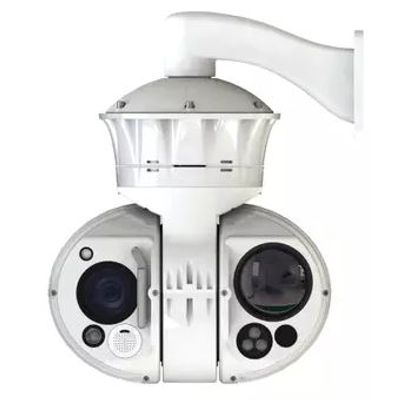

CQ - Model 384x288 -Wildfire Warning Ptz Thermal Imaging Camera

SHARE

Based on the latest sixth-generation uncooled infrared technology, It is designed for day and night monitoring, intelligent analysis, and active defense. It is composed of thermal imaging module, high-definition visible light module, intelligent analysis module, laser lighting/ranging module, PTZ precision transmission device and control mechanism, etc. Small in size and easy to install.

Most popular related searches
thermal imaging
thermal camera
thermal imaging camera
MEMS technology
track screen
intrusion detection
vehicle detection
displacement sensor
screen filter
laboratory homogenizer
  1. Thermal imaging uses the latest generation of ultra-fine resolution VOx detectors based on MEMS technology, adopts high-sensitivity 384×288/640×512 resolution 12μm ultra-fine resolution uncooled focal plane imaging detector and miniaturized infrared lens.
  2. Full HD low-illumination visible light camera combined with ultra-homogenized HD laser illumination to achieve high-definition detailed observation of day and night targets.
  3. Multi-dimensional perception: support image ruler, support optional laser ranging, support access to multiple sensors (micro-weather\environmental detection\GPS Beidou positioning\displacement\tilt sensor).
  4. Highly intelligent: support fireworks alarms, and temperature detection; support vehicle, ship, and human detection, classification, and recognition; support target tracking, screening and filtering; support regional intrusion detection; support AR intelligent information overlay linkage.
  5. Active defense: support tweeter + strobe light, support optional green laser dazzling, deter or deny criminals.
  6. Pitch: -90°~+90°, horizontal 360° continuous rotation, 720° full coverage of three-dimensional space.
  7. Level: 0.01°/s~100°/s; Tilt: 0.01°/s~80°/s, high-speed start and stop, self-adaptive focus and speed, accurate target positioning.
  8. Self-diagnosis and self-recovery: support full life management, fault self-check, front-end storage, resumable transmission, power-off memory, remote restart/upgrade, greatly improve the user experience and reduce the cost of use
  9. Military-grade craftsmanship, IP67 protection, rainproof and dustproof.
  10. Highly integrated and fast deployment: The weight of the whole machine is ≤7kg, easy to install and maintain.
