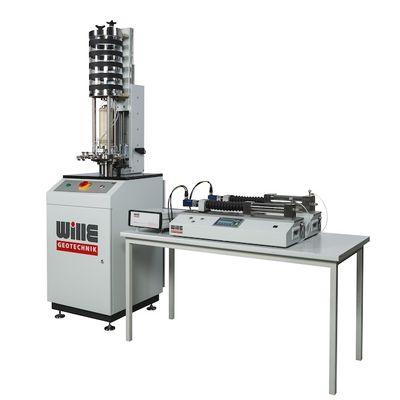

Wille Geotechnik - Model HCA -Hollow Cylinder Apparatus
The Hollow Cylinder Apparatus enables the operator to apply rotational displacement and torque to a hollow cylindrical or soil specimen of soil. This modular testing apparatus is suitable for static and dynamic test and can simulate the complex loading conditions at a point in a soil Specimen. The device can also be used as a cyclic triaxial testing device by changing the upper and lower pedestals into solid ones. It is capable of testing axial strain levels lower than 0.00001 %.
APS (Wille Geotechnik®) is manufacturing and providing variety range of electromechanical or servo hydraulic Hollow Cylinder Apparatus in variety range of load/torque and frequencies for many years which enable us to cover all needs of the users for testing small and large sample sizes for different applications.This machine gives a lot of flexibilities to the users to run advanced complex tests with highest accuracy and precision and add different upgrading module to system to configure the required testing applications.
- Static and cyclic loads
- Electromechanical or servohydraulic Apparatus
- For Hollow and solid samples
- Electromechanical apparatus up to 25KN- 10Hz/200 Nm
- Servo-hydraulic apparatus up to 100KN- 100Hz/600 Nm
- Sample sizes up to 300mm O.D
- Software including different test module e.g. Saturation, consolidation, Stress paths, monotonic shear test, dynamic shear test, plane strain, simple shear and etc.
- Easy access to sample by Cell wall lifting mechanism
- High speed dynamic controller for monitoring of measured values and test procedures (2,5KHz or 10 KHz and 24 bit)
- Lifting device for Triaxial cell
- Large sample sizes up to 300mm O.D
- Balanced ram for dynamic tests up to 10Hz
- Temperature control package
- Bender Element package
- Unsaturated Test
- Local strain transducers
- Non-contact proximity transducers
- Submersible load cell
- High Pressure cell
- K0 tests
- Water degassing apparatus
- Cyclic Cell and back Pressure
- Data Acquisition, processing, and device management (DPD) Module
- Saturation Module
- B-value -Test Module
- Consolidation Module (Isotropic or anisotropic)
- Permeability Test Module
- Stress path module: Linear stress paths-b, α and q
- Simple Shear (distortion, ε! = ε" = 0)
- Plane Strain (compression, ε" = ε# = 0)
- Static Shear Stage Module: UU: Unconsolidated Undrained Triaxial Test (Total Stress test)
- Static Shear Stage Module: CU: Consolidated Undrained Triaxial Test with pore pressure measurement (Effective Stress test)
- Static Shear Stage Module:CD: Consolidated Drained Triaxial Test with pore pressure measurement (Effective Stress test)
- Unsaturated Test Module
- K0 Test Module
- Dynamic Shear Stage Module :
- Advanced loading Module
- Temperature-Controlled Triaxial Testing
- Cyclic Cell / Back Pressure Module
