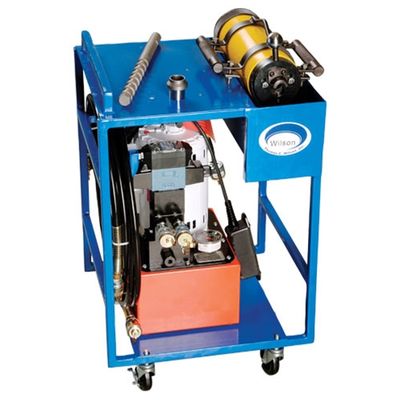

Wilson - Model Spear Type -Electric Hydraulic Tube Puller
The Wilson Power Puller is designed for 1/2 to 1 1/2-inch (12.7 - 38.1mm) Outer Diameter and features a heavy-duty, double-acting hydraulic cylinder with hydraulic return and a 30-ton capacity. A safety relief valve on the cylinder protects against overpressurizing. Its quick-acting, cylinder-mounted safety lock provides positive engagement with a notched spear extension. All hose connections to the cylinder and pump have quick-disconnect couplings. Maximum operating pressure is 10,000 psi. The Wilson WPP-1500 Tube Puller is available on a rental basis. Please click here if you are interested in Thomas C. Wilson rental equipment.
Most popular related searches
acting hydraulic cylinder
safety relief valve
hydraulic cylinder
relief valve
extensible hose
electric pump
hydraulic pneumatics
hydraulic valve
- Heavy-duty, double-acting hydraulic cylinder with hydraulic return
- Safety relief valve on cylinder protects against overpressurizing
- Quick-acting, cylinder-mounted safety lock provides positive engagement with notched spear extension
- All hose connections to cylinder and pump have quick-disconnect couplings
- 30-ton capacity cylinder covers tube Outer Diameter range from 1/2 to 1 1/2-inch tube sizes
- 7-inch long stroke cylinder allows for 14-inch total pull when using notched extension
- Maximum Operating Pressure: 10,000 psi
- 1 1/2 H.P. Motor with 115 Volt 60 Hz AC Power Input
- 220 Volt motor available upon request
WPP-1500 Kit for 1/2 to 1-Inch OD tubes consists of:
- Hydraulic Cylinder 7-Inch Stroke
- Notched Extension
- Electric/Hydraulic Pump Set 115 Volt/60 Hz
- 1 Gallon of Hydraulic Oil No. 74478-0041
- 2 12-Foot Hydraulic Hoses No. 74490
- Assembled with Quick-Acting Hose Couplings
- Mobile Cart
- Service Manual
Other available kits:
- 220 Volt/50Hz
- Cylinder 3-Inch Stroke, 30-Ton
- Pneumatic/Hydraulic Pump
