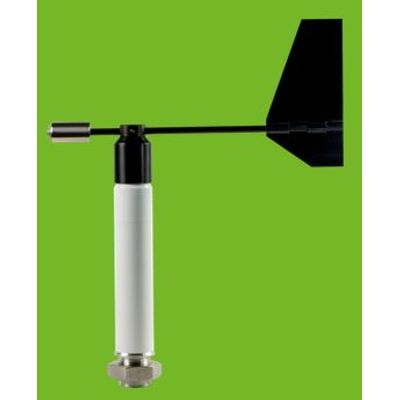

Lambrecht - Model PRO-NAV -Wind Direction Sensor

FromLAMBRECHT meteo GmbH - an AEM brand

SHARE

Seawater-resistant and special reinforced measuring elements assure high reliability over a wide working life. The special coating ensures the sensors to be used on vessels, off-shore wind energy plants and further applications close to the sea. The housing and the measuring elements are made from seawaterresistant aluminium and the design was aerodynamically optimised. The heating integrated in the head of the sensor as well as the reinforced, double bearing axis makes this sensors to the most robust version of it`s class.

Most popular related searches

wind direction sensor

bearing vibration

wind meteorology

re-inforced measuring elements, axis and bearing for high vibration resistance
special coating for error-free long time use
low start-up values and wide measuring range up to 60 m/s
wear-free data collection for high accuracy and resolution of the measuring values

ship meteorology
wind energy plants
robust industry applications
cranes
buoys and other offshore applications

Id-No.: 00.14523.140040
Measuring range: 0...360°
Accuracy: ± 2°
Resolution: < 1°
Starting value: < 0.5 m/s
Output: 4...20 mA = 0...360°
Update rate: 4 Hz
Range of application: temperatures -40...+70 °C • heated • wind speed max. gusts of 100 m/s • humidity 0...100 % r.h.
Supply voltage: 24 VDC (20...28 VDC) • 18 W heating • max. 800 mA • The heating within the sensor head prevents blocking of the moving parts under most climatological conditions
Measuring elements: reinforced wind vane, aluminium, special surface
Measuring principle: Hall Sensor Array, non-contact
Housing: seawater-resistant aluminium • anodised and white coated • IP 65 in upright position •
M12 cable-plug connection • stainless steel nut and lock washer
Weight: 0.4 kg
Included in delivery: 1 sensor • 15 m cable • with 4 pin M12 plug connector
