Clarity - Wind Module

This lightweight and durable sensor is made of molded thermoplastic for high performance — even in extreme climates with harsh UV and weather conditions.

Powered by the native solar panel of its companion Node-S device, the Clarity Wind Module is a truly plug-and-play solution for better source attribution and improved air quality modeling.

Data Flow

• Measurement Frequency (Adjustable)
• Default: Once every 15 minutes
• Sampling synchronized with Node-S to occur simultaneously with air pollutant measurements; see Node-S specifications for details
• Data Retrieval from Cloud
• Clarity Dashboard (Web App)
• RESTful APIs (Programmatic Access)
• Device to Cloud Communication: Connectivity provided by Clarity Node-S (SIM card and service included)

Power

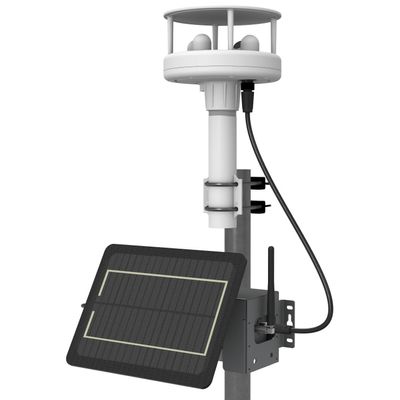

• Solar-Powered via Clarity Node-S: Wind Module self-powered via solar panel of companion Node-S device

Mounting & Deployment

• Connect to Node-S: Plug module into Clarity Node; Node will reset and automatically recognize the module
• Sensor Siting
• Install sensor in an open area with unobstructed air flow
• Align to true north

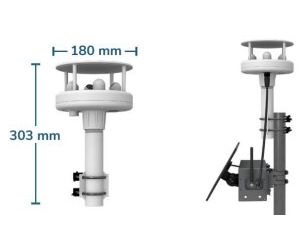

• Mounting: Use the manufacturer-provided mounting bracket to affix to a pole or another secure foundation

Operating Conditions

• Weatherproof Rating: IP65
• UV Exposure: UV-stabilised ABS plastic
• Absolute temperature: -40° to 80° C
• Operating temperature: See Node-S specifications
• Operating humidity: See Node-S specifications
